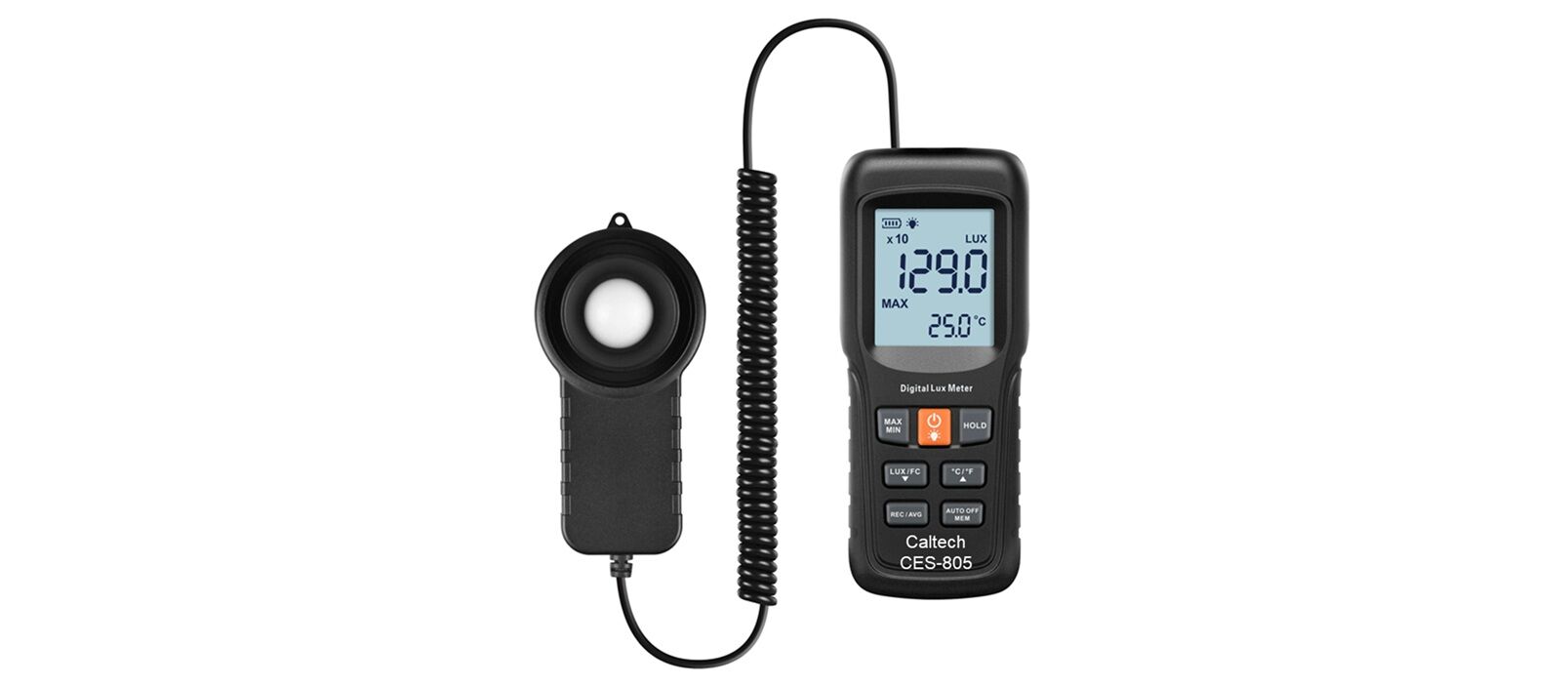

Caltech India is the leading manufacturer and supplier of CES 805 Digital Lux Meter with Probe. CES 805 Lumens Tester is an instrument specialized for measuring illumination and can be used in factories, lighting industry, planting, schools, offices, laboratories and street lamp construction. It is also called as Illuminance Meter or Photometer or Light Intensity Meter.
The CES 805 Light Measurement Meter is equipped with high-sensitivity photosensitive probes that can be measured even in microlight environments. Its large range of 0~200000Lux meet the user measurement requirements in different environments.
The CES 805 Illuminance Meter has two available measurement modes. Where, in the maximum or minimum value measurement mode, the maximum or minimum value displayed by the instrument will change according to the real-time measurement results, and the user can obtain the current measured maximum or minimum illumination value at any time.
CES 805 Light Intensity Meter has the ability to record and view data, recording up to 60 data. Meanwhile, the instrument can also automatically calculate the average value. After the user records the data, the average of the data is obtained just through the average viewing interface.
The CES 805 Lux Meter has a split-type design. The distance between the probe and the subject object is flexible and adjustable when measurement. In addition, CES 805 has the function to measuring ambient temperature.
Features:
- Double display of illumination and ambient temperature
- Automatic range
- Maximum/Minimum measurement mode
- Average view
- Record and view the data
- Button beep prompt
- Value locking
- USB power supply
- Screen-band backlight
- Automatic shutdown
- Battery protection
Applications:
- Factory
- Lighting industry
- Planting industry
- School
- Office
- Laboratory
- Street lamp construction
Ordering Information:
| CES 805 – Digital Lux Meter with Probe | ||
| Model | CES-805 | |
| Measurement parameters | Illuminance | Environment temperature |
| Measurement range | 0~200000Lux 0~20000Fc | -10~50°C 14~140°F |
| Accuracy | ±3%rdg±10dgts(≤10000Lux) ±4%rdg±10dgts(Other range) | ±1.0°C |
| Resolution | 0.1Lux | 0.1°C |
| Unit | Lux, Fc | °C, °F |
| Sampling rate | 2 times/second | |
| Repeplicate test | ±2% | |
| Operating environment | Temperature: -10~50°C Humidity: 10~90%RH | |
| Storage environment | Temperature: -10~55°C Humidity: 10~95%RH | |
| Power supply | 2 pcs of 1.5V AA alkaline batteries 2 pcs of 1.2V AA rechargeable batteries 5V USB | |
| Dimensions | Host: 153*65*30mm Photosensitive probe: 58*58*30mm | |
| Protection level | IP41 | |
| Material | ABS | |
| Weight | About 194g | |
