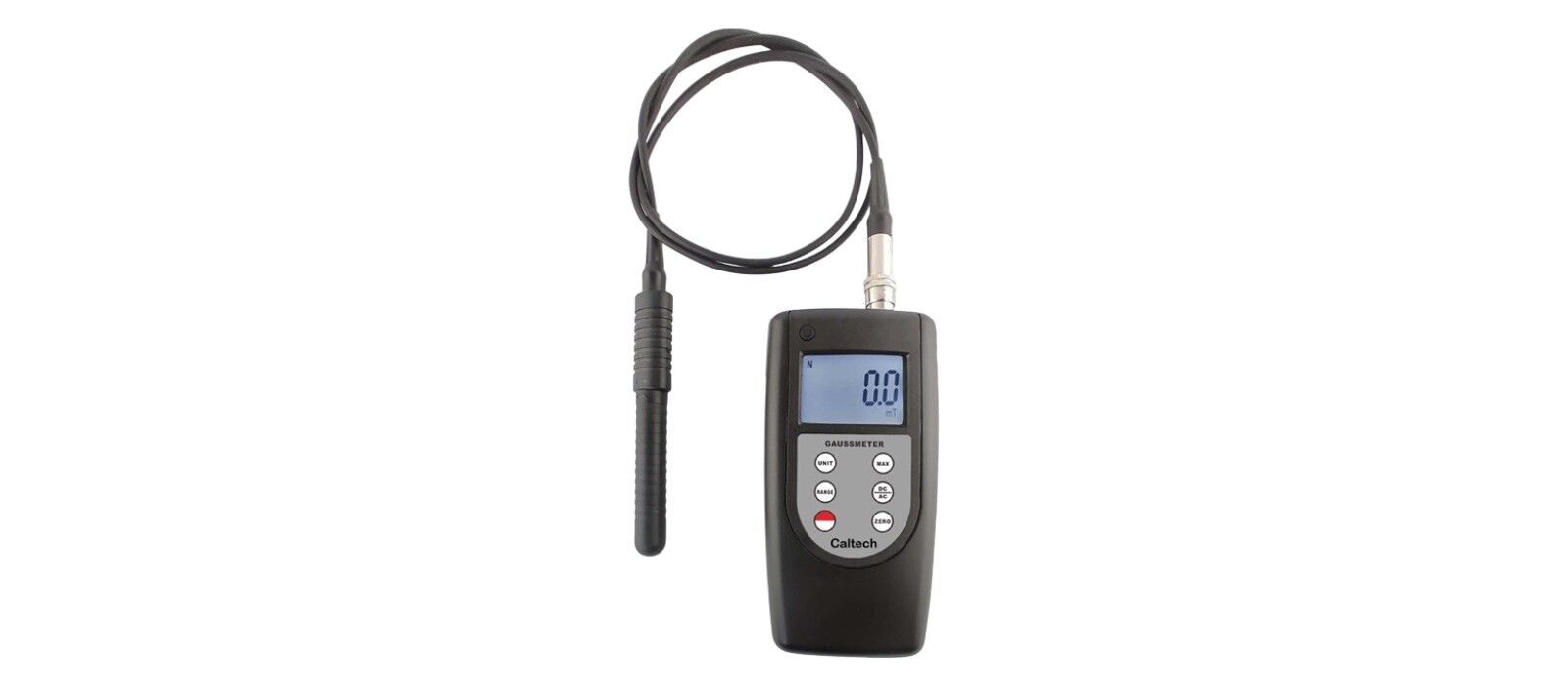

Caltech India is the manufacturer and supplier of CES 435 Digital Tesla Meter (AC/DC Magnetic Field) or Gaussmeter. A CES 435 Digital Gaussmeter is a precision instrument designed for measuring the strength and polarity of magnetic fields in both ferromagnetic and non-ferromagnetic applications. It is also known as (Tesla Meter). It provides accurate magnetic flux density measurements in units such as Gauss (G) and milli Tesla (mT), making it an essential tool for quality control, research, manufacturing, and maintenance operations. The instrument utilizes a highly sensitive Hall Effect probe to detect magnetic fields and display readings instantly on a large digital LCD screen. It is widely used in industries involving permanent magnets, electric motors, transformers, speakers, magnetic separators, medical equipment, laboratories, and electronic components.
The CES 435 Digital Tesla Meter (AC/DC Magnetic Field) offers reliable and repeatable measurements with excellent accuracy, helping users evaluate magnetic field strength, detect magnetic leakage, verify magnetization levels, and ensure product quality. Its compact design and advanced measurement capabilities make it suitable for both laboratory analysis and on-site field inspections.
Features:
- High-precision magnetic field measurement
- Measures DC and AC magnetic fields
- Large easy-to-read digital display
- Peak hold measurement
- Selectable measurement units (Gauss, Milli-Tesla)
- Portable, lightweight, and user-friendly design
- High-resolution hall effect sensor probe
- Battery-operated for field and laboratory use
- Fast response time with stable readings
Applications:
- Permanent magnet inspection and testing
- Magnetic material quality control
- Motor and generator maintenance
- Transformer magnetic field measurement
- Magnetic separator performance verification
- Research laboratories and educational institutes
- Loudspeaker and magnetic assembly testing
- Electromagnetic device development
- Industrial maintenance and troubleshooting
Industries:
- Magnet Manufacturing
- Automotive Industry
- Electronics & Electrical Industry
- Aerospace & Defense
- Research & Development Laboratories
- Universities and Educational Institutions
- Power Generation & Distribution
- Industrial Manufacturing Plants
Ordering Information:
| CES 435 – Digital Gauss Meter | |||
| Model | CES 435/1 | CES 435/2 | CES 435/3 |
| Measuring Range | 0~2000mT | 0~2000mT | 0~2000mT |
| Frequency Range | 10 ~ 200Hz | 10 ~ 200Hz | 1 ~ 400Hz |
| Accuracy | ±5% (0~2000mT) | ±2% (0~100mT) ; ±5% (＞100mT) | DC: 1%, AC: 1% |
| Resolution | 0.01mT (200mT); 0.1mT (2000mT) | ||
| Unit | mT (milli-Tesla) / Gs (gauss) | ||
| Magnetic Field Under Test | DC Magnetic Field (Static) ; AC Magnetic Field (Dynamic) | ||
| Functional Specification | Peak retention Gs (Gauss) / mT (Millitesla) can be switched freely | ||
| Polarity in DC field | N for positive, S for negative | ||
| Display Mode | 4 ½ LCD | ||
| Operating Conditions | Temp: 0~50°C, Humidity <80% RH | ||
| Power Supply | 4 x 1.5V AAA Battery | ||
| Dimension | Main unit: 140x73x30mm (LXWXH) | ||
| Instrument Weight | 180g | ||
| Standard Accessories | Main Unit | ||
| Hall Sensor | |||
| Operating Manual | |||
