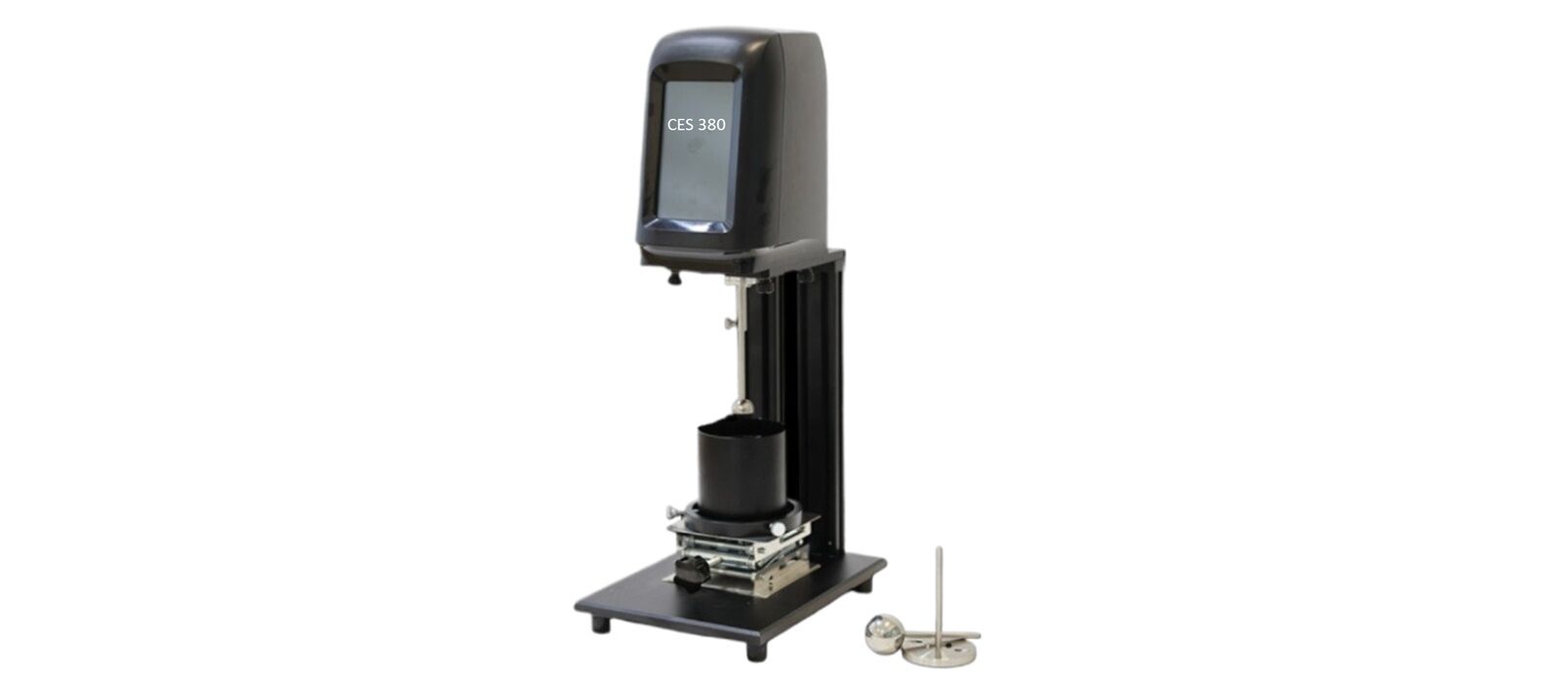

Caltech India is the leading manufacturer and supplier of CES 380 Intelligent Rotothinner Viscometer (Touch-Screen). It is a simple, easy-to-use rotary viscometer, it is used to measure sample viscosity character under three different shearing rates (20S-1, 44S-1, 200S-1), and also can be used to measure viscosity character of same sample depending shearing time. It complies with ISO 2884-2 Paints and varnishes – Determination of viscosity using rotary viscometers-Part 2:Disc or ball viscometer operated at a specified speed and BS 3900 A7 standards etc.
Rotothinner Viscometer comes with three spindles as below meets different measuring ranges:
- No.1 Disc Spindle: for use with viscosities up to 2.2 Pa.s (2,200 mPa.s), with an average shear rate of approximately 200S-1 with a Newtonian fluid.
- No.2 Big ball Spindle: for use with viscosities up to 7.5 Pa.s (7,500 mPa.s), with an average shear rate of approximately 44S-1 with a Newtonian fluid.
- No.3 Small ball Spindle: for use with viscosities up to 55 Pa.s (55,000 mPa.s), with an average shear rate of approximately 20S-1 with a Newtonian fluid. Standard container of 250 ml which complies with standard requirements: Inner diameter is 74mm, Height is 74mm.
Features:
- 5-inch screen with rich information: easy to operate
- Anti-static shell
- RTD temperature probe
- ARM chip processor for higher data processing speed
- Manual up and down lift
- Meet ISO 2884-2 and BS 3900 A7 standards
- Step motor control for more accurate rotate speed
- Hold reading value displayed on the screen
- Continuous viscosity value displayed
- Equip with a printer interface
- Linear calibration by computers
- Power supply: 100V-240V, good anti interference
Ordering Information:
| CES 380 – Intelligent Rotothinner Viscometer (Touch-Screen) | |
| Model | CES 380 |
| Range (mPa.s) | Spindle D1 (SR: 200 S-1 ): 22-2200mPa.s Spindle D2 (SR:44S-1} ): 75-7500mPa.s Spindle D3 (SR: 20S-1 ): 350-55000mPa.s |
| Speed (RPM) | 562 RPM ± 0.1 |
| Measuring Can | Measuring can (inner diameter:74mm, height:74mm) |
| Spindles | Spindle D1, D2, D3 |
| Accuracy | ±1.0% (of full scale range) |
| Repeatability | ±0.5% |
| Packing List | Viscometer – 1 Set Spindle D1, D2, D3 – 1 Set Measuring Can (250ml) – 1 Nos RTD Temperature Probe – 1 Nos Power Adapter – 1 Nos |
