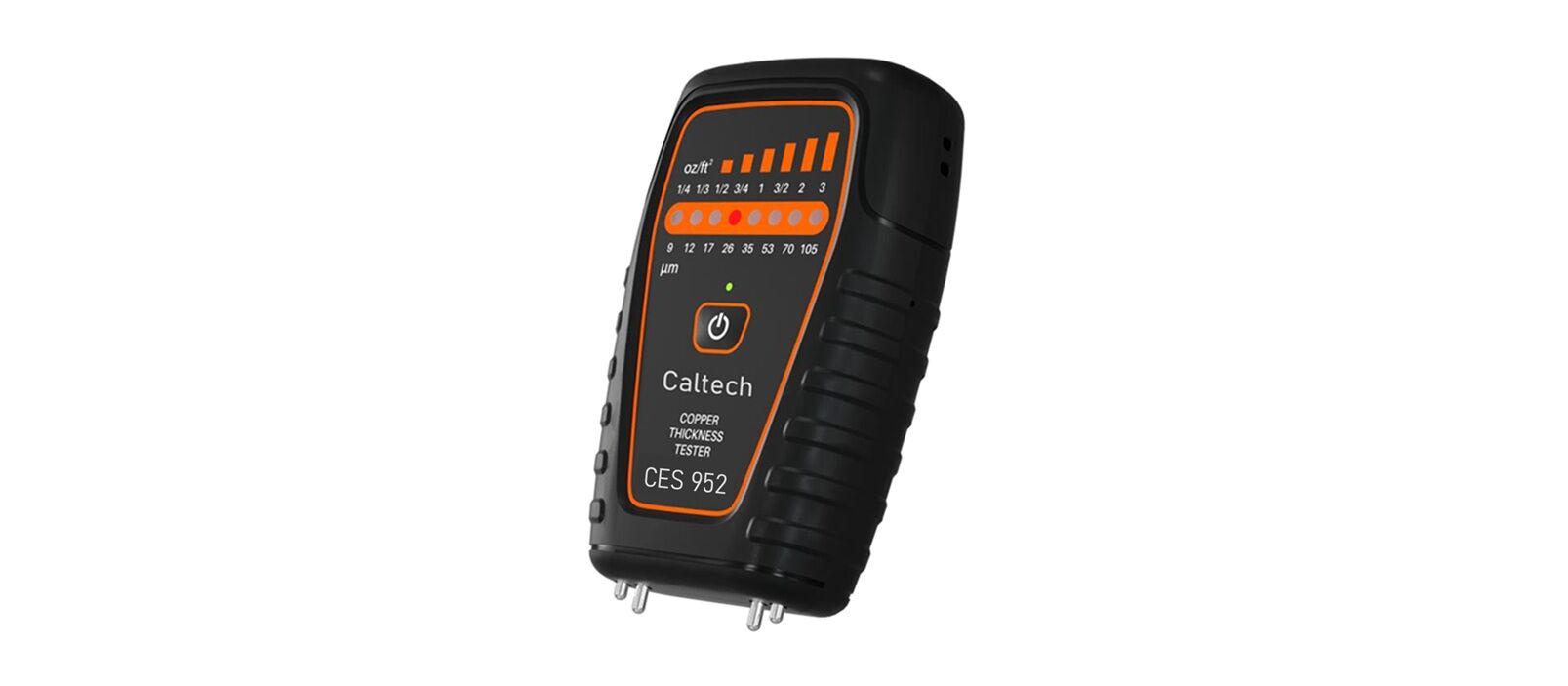

Caltech India is the manufacturer and supplier of CES 952 Copper Thickness Tester. CES 952 is a handheld copper foil graded thickness gauge. The instrument uses the principle of micro-resistance to measure the thickness of copper foil on the printed circuit board, which can be used to detect the thickness of copper foil on the surface of PCB, CCL or FPC. CES 952 has sound and light prompt function, and the measurement result is indicated by LED. The instrument “di” sound prompts the completion of the measurement, and the LED light corresponding to the thickness value is lit at the same time. CES 952 is small in size and can be carried anywhere.
Features :
- 8 grades
- Metric and Imperial units
- Sound and light indication
- Auto power off
- One key operation
- Small and portable
- Battery protection
Application :
- PCB Copper Foil Detection – typically involves measuring the thickness of the copper foil used in printed circuit boards.
- CCL Copper Foil Detection – is the process of verifying the copper foil on a Copper Clad Laminate (CCL) board, typically involves measuring its thickness.
- FPC Copper Foil Detection – typically involves methods for measuring the thickness or identifying any defects in the copper foil layer used in flexible printed circuit boards (FPCs).
Ordering Information :
| CES 952 – Copper Thickness Tester | |
| Measuring range | 0-122um (0-3.5 oz/ft2) |
| Metric units (μm) | 9,12,17,26,35,53,70,100 |
| Imperial units (oz/ft^{2} ) | 1/4,1/3,1/2,3/4,1,3/2,2,3 |
| Unit | oz/ft2, μm |
| Operating environment | Temperature: -10~50℃; Humidity: 20~90%RH(non-condensing) |
| Storage environment | Temperature: -20~60℃; Humidity: 20~90%RH(non-condensing) |
| Power supply | 2 AA size 1.5V alkaline batteries/1.2V rechargeable batteries |
| Protection class | IP20 |
| Dimensions | 109*67*31mm |
| Material | ABS |
| Weight | About 82g (without battery) |
