Coating Thickness Gauge Ferrous & Non Ferrous

Synonym : Paint film thickness gauge, Dry film thickness gauge, DFT Meter, Paint coating thickness gauge, Coating mil thickness gauge

Category: Coating Inspection, Dry Film Thickness

Caltech India offers Digital Coating Thickness Gauge CES-408 FN model for both ferrous (F) & non ferrous (NF) substrate materials. A coating thickness gauge is used to measure dry film thickness. It is also referred to as a paint meter and mil gage. Dry Film thickness measurements can be used to evaluate a coating’s expected life, the product’s appearance and performance, and ensure compliance as per International Standards.

Paint coating thickness gauge is a kind of portable measuring instrument that can take fast, intact, precise measurement of coating thickness. It can not only be used in engineering field, laboratories, but also meet the demand of multiple measuring by using two separate probes for ferrous and non-ferrous substrates. It is used widely in manufacturing, metal processing industry, powder coating, paint coating industry, chemical industry, commodity inspection field, etc. As an essential instrument in material protection industry.

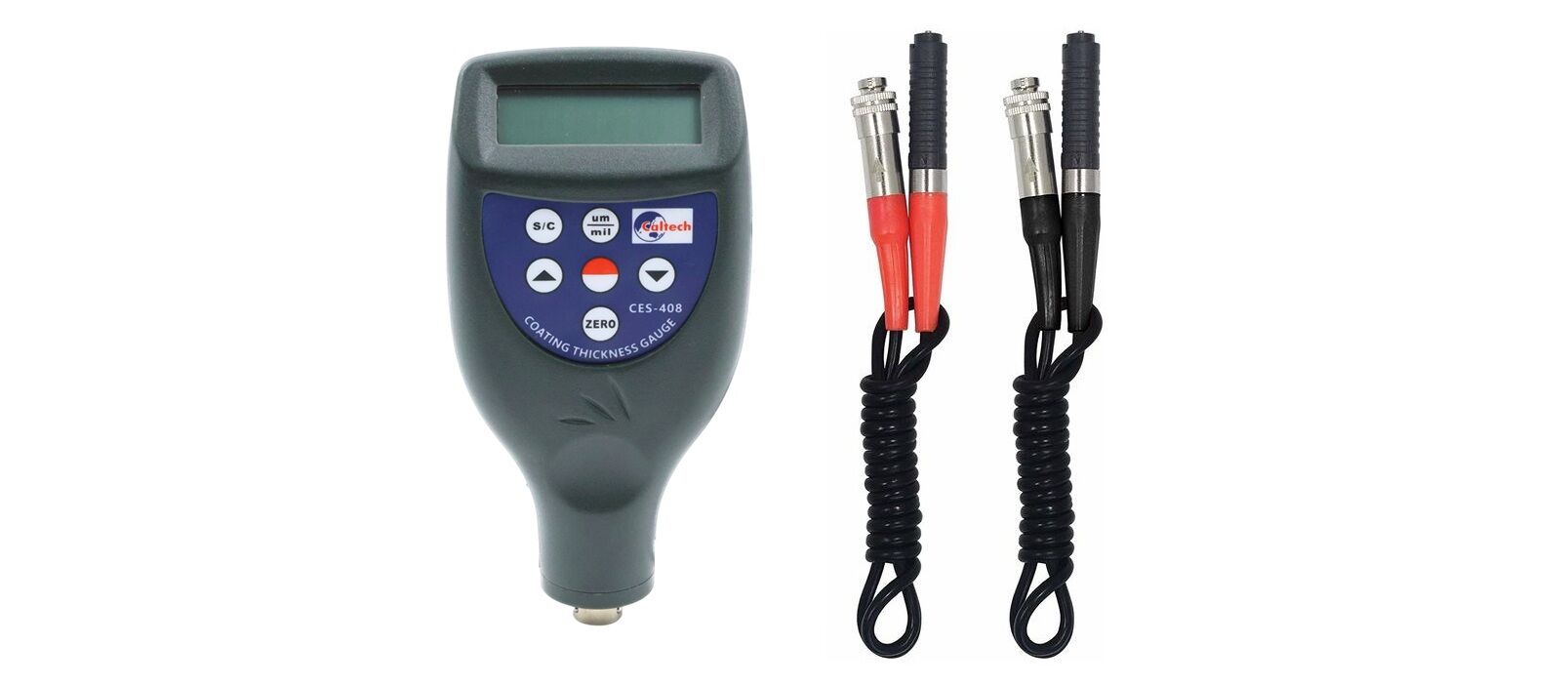

CES-408 FN Coating thickness meter comes with ferrous (F) & non ferrous (NF) probes. Coating thickness gauge has dual technology features selection of magnetic induction or eddy current measurement techniques. Coating thickness gage utilize non-destructive principle with most economical choice that retains the uncompromising quality of coating inspection instruments.

Dry film thickness can be measured by non-destructive coating thickness measurement instruments that can be taken on either magnetic steel surfaces or non-magnetic metal surfaces such as stainless steel or aluminium using a digital coating thickness gauge.

Coating thickness gauge are ideal to measure coating thickness such as powder coating or paint coating on metallic substrates. Electromagnetic induction is used for non-magnetic coatings on ferrous substrates such as steel, whilst the eddy current principle is used for non-conductive coatings on non-ferrous metal substrates.

Dry film thickness is probably the most critical measurement in the coatings industry because of its impact on the coating process, quality and cost. We are leading coating thickness gauge manufacturers and supplier in india. To know coating thickness gauge price in India, contact us.

Features:

  • Works on Magnetic Induction and Eddy Current principle
  • Non-magnetic coatings (e.g. paint, zinc) on steel
  • Insulating coatings (e.g. paint) on no-ferrous metals
  • No-ferrous metals coatings on insulating substrates
  • Two measuring mode: CONTINUE and SINGLE
  • Two working Mode: DIRECT and GROUP
  • Automatic Power Off
  • Easy Calibrations
  • Low battery, error indication
  • Power supply: 4×1.5V AAA (UM-4)
  • Use RS-232 data output to connect with PC.
  • Provide Bluetooth data output choice.
  • Supplied with Calibration Iron, Calibration Aluminum, Calibration Foils, in a carrying case.

Specifications:

Sensor probeFerrousNon Ferrous
Working principleMagnetic inductionEddy current principle
Measuring range0~1250um0~1250um
Guaranteed tolerance (of reading)(+/- 3%+1)um(+/- 3%+1.5)um
Low range Precision0.1um0.1um
Minimum curvature radius1.5mm3mm
Diameter of Minimum area3mm5mm
Basic critical thickness0.5mm0.3mm
Size(HxWxD)113.5mm x 54mm x 27mm

Optional Accessories:

RS-232 Data cable with software, Bluetooth Data Adapter with software.

For further details please contact Caltech India

Ordering Information:

Coating Thickness Gauge
CES-408 FN Digital Coating Thickness Meter (Ferrous & Non Ferrous 1250 µm)
Coatem Digital Coating Thickness Meter ( Ferrous 0-1500 µm)
Coatem NFC Digital Coating Thickness Meter (Ferrous & Non Ferrous 1500 µm)
Coatem-3 Digital Coating Thickness Meter (Ferrous 0-3000 µm)
Coatem-6 Digital Coating Thickness Meter (Ferrous 0-6000µm)
Coatem NF Digital Coating Thickness Meter (Non Ferrous 0-1500 µm)
CF 1500 Calibration Foils
Fe Base Stainless Steel Zero Block

We have number of coating thickness gauges as per choice of customer.
