Automatic Film Applicator

Synonym : Automatic Drawdown Machine, Motorised Film Applicator, Film Applicator, Thin Film Applicator

Category: Applicators Machine, Bar Coaters & Film Applicators Tools, Coating Inspection

Caltech India offers Automatic Film Applicator. It enables experimental chemists to conveniently draw down precise coating film on the different substrates so as to reduce and eliminate errors caused by manual factors. Factors affecting the draw down are the shear rate and downward force applied to the applicator tool. The Motorised Film Applicator sucks test paper smoothly on the vacuum bed. It greatly improves the reproducibility of paint film.

Main Technical Parameters:

  • Adjustable variable speed: 2~100mm/s
  • High precision linear guide bar and direct current motor without carbon brush. Making the draw down speed more stable.
  • Reasonable design bracket, easily and simply operated, and can add any load.
  • Special precise machining vacuum suction-gas plate with high smooth precision and high hardness-for better repeatability
  • Can set the starting point freely, is suitable for different size substrates
  • Four types application distance can be selected freely.
  • Applicable to all Biugeds different type and size applicators and wire bars
  • External vacuum pump eliminate all shake coming from traditional structure (put pump into machine)

Ordering Information:

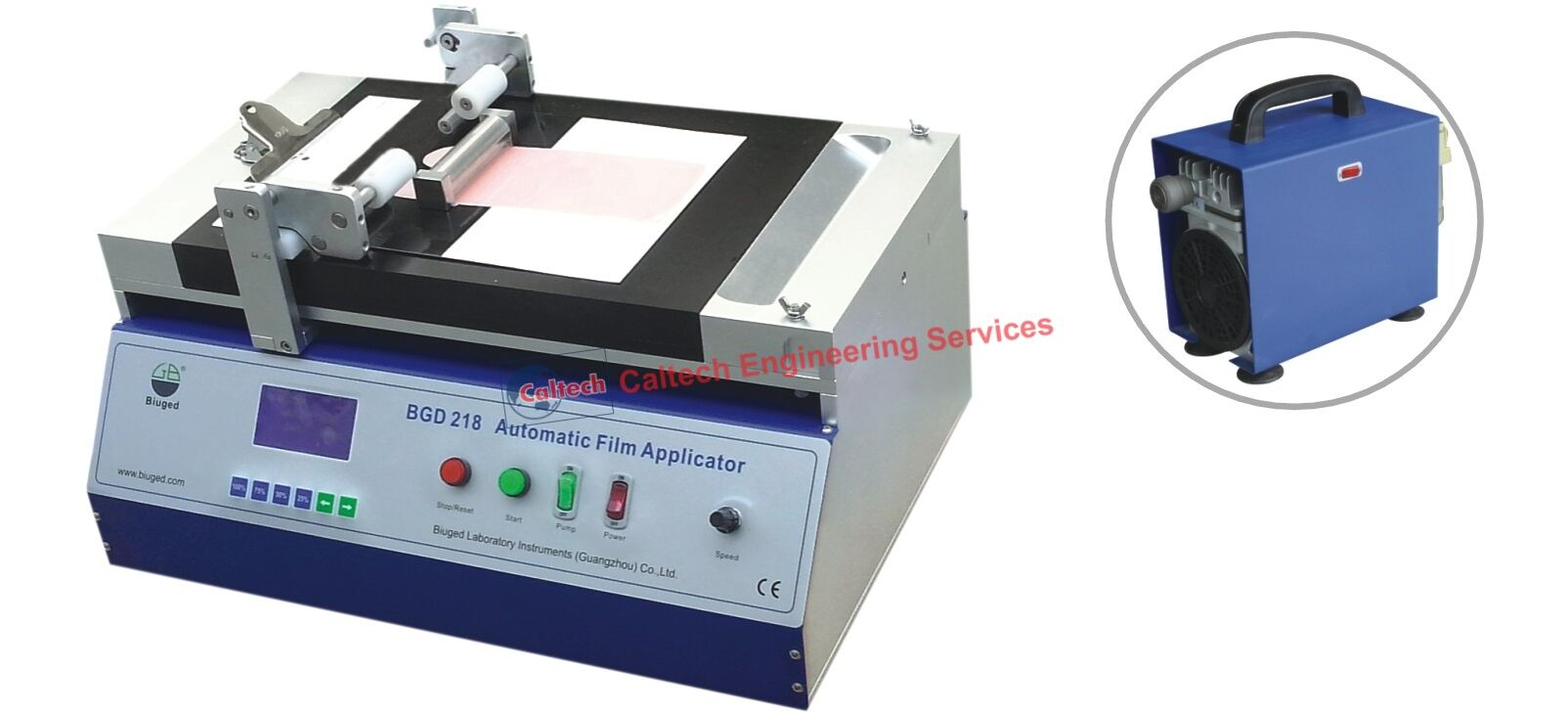

Automatic Film Applicator / Motorised Film Applicator

Ordering Information →BGD 218/1BGD 218/2
Technical Parameters ↓
Draw down vacuum bed size360 mm x 250 mm490 x 250mm
Draw down vacuum bed size with hole285 mm x 205mm420 x 190mm
Max. application length250mm375mm
Draw down speed2~100mm/s (adjustable variable speed)
Carriage holder weight1.5KG (2KG or 2.5KG is optional)
Total Power370W
Power Source220V; 50Hz
Overall Size (No vacuum pump) (LxWxH)500 x 345 x 340mm635 x 345 x 340mm
