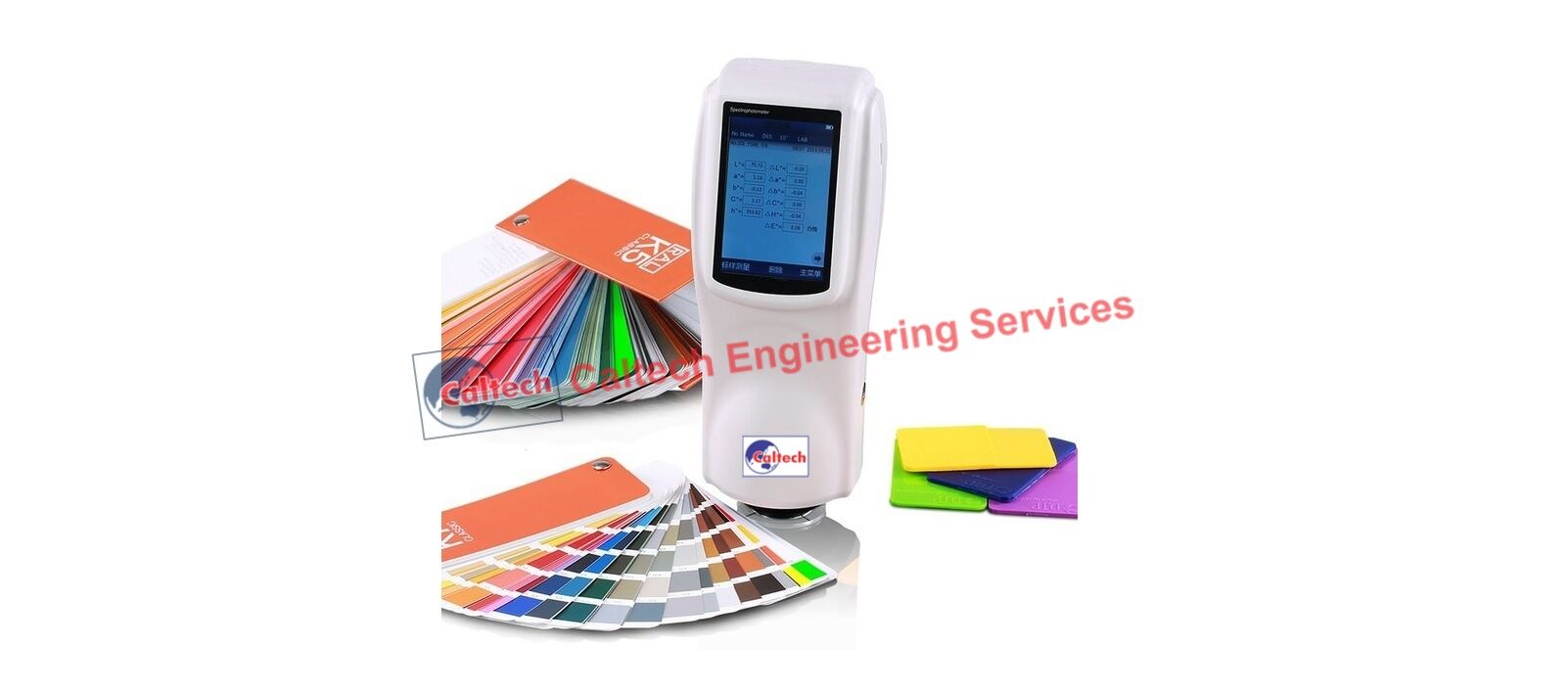

CES-526 Portable Spectrophotometer

Synonym :

Category: Appearance, Coating Inspection, Spectrophotometer

Caltech India offers CES-526 Portable Spectrophotometer. Spectrophotometer are color measurement device used to capture and evaluate color. As part of a color control program, brand owners and designers use them to specify and communicate color, and manufacturers use them to monitor color accuracy throughout production.

It uses the principle of combination LED precision spectroscopy, CES-526 portable spectrophotometer uses d/8 structure and comply with CIE No.15, GB/T 3978. With 400~700nm, NS810 features with high accuracy DeltaE*ab 0.04, and 8mm aperture makes measurement so easy. It can save 1000 Standards, 15000 Samples.

CES-526 portable spectrophotometer uses d/8 structure and comply with CIE No.15, GB/T 3978. With 400~700nm, NS810 features with high accuracy DeltaE*ab 0.04, and 8mm aperture makes measurement so easy. It can save 1000 Standards, 15000 Samples and you also can input your own LAB or XYZ value into the instrument. With SQC8 software,  you can do better color control management. Plus, it is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.

CES-526 Portable Spectrophotometer Product Features:

  1. Display complete reflectance rate and input LAB value manually.
  2. NS810:D/8 structure (diffuse illumination, 8° viewing )
  3. 3.5 inch large capacitive touch screen, fully functional touch control.
  4. 2º/10º degree observe, multiple lights, many color systems.
  5. The repeatability ΔE*ab is within 0.04, errors is less than 0.2
  6. Large capacity storage, more than 15000 data.
  7. PC software with powerful extension functions.
  8. 15° oblique angle screen, in line with the human eye observation.
  9. Oversized integrating sphere, more effective homogenization ray of lights.
  10. High hardware configuration with a number of innovative technologies.

Application Industry:

Colorimeter, Spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS810 portable spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management. Colorimeter is equipped with high-end color management software that can connect to PC to achieve more extension functions.

CES-526 Spectrophotometer Specification:

ModelCES-526 Spectrophotometer
Illumination/observation systemd/8 (diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978.
Integrating sphere SizeΦ58mm
Light SourceCombined LED sources
SensorSilicon photodiode array
Wavelength range400~700nm
Wavelength pitch10nm
Reflectance range0~200%
Measuring ApertureΦ8mm
Color SpaceCIE LAB, XYZ, Yxy, LCh, CIE LUV,LAB&WI&YI
Color difference FormulaΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*cmc(l:c),CIE2000ΔE*00,ΔE(h)
Other Chromaticity DataWhiteness – WI(ASTM E313,CIE/ISO,AATCC,Hunter),
Yellowness-YI(ASTM D1925,ASTM 313),
TI(ASTM E313,CIE/ISO),
Metamerism Index (Mt)
Colour Stain, Color Fastness, Color Strength, Opacity
Observer2°/10°
IlluminantD65,D50,A,C,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12
Display DataSpectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color index setting(ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting
Measurement Time1.5s
RepeatabilitySpectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
Inter Instrument AgreementWithin DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)
DimensionL*W*H=90*77*230mm
Weight600g
BatteryLi-ion battery. 2800 times within 8 hours.
Lamp Life5 years, more than 1.6 million measurements
Display ScreenTFT 3.5inch, Capacitive Touch Screen
InterfaceUSB/RS-232
Data Memory1000 Standards, 15000 Samples
Operating Temperature0~40℃(32~104°F)
Storage temperature-20~50℃(-4~122°F)
Standard AccessoryPower Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap
Optional AccessoryUniversal Test Components, Micro Printer, Powder Test Box
NotesThe specifications are subject to change without notice.
