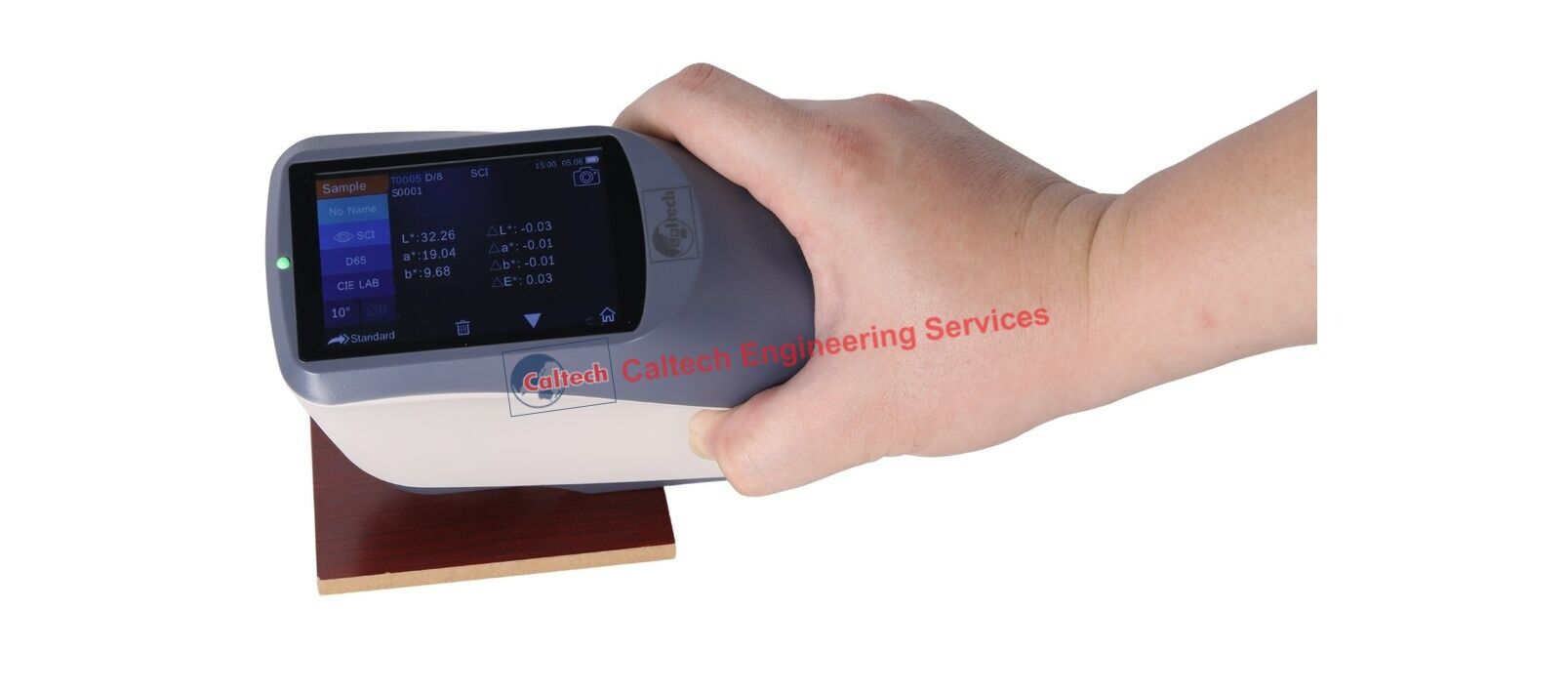

CES-520 Grating Spectrophotometer

Synonym :

Category: Appearance, Coating Inspection, Spectrophotometer

Caltech India offer CES-520 Grating Spectrophotometer is developed by Caltech with Independent intellectual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry.

Comply with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724/1, ASTM E1164, DIN5033 Teil7, CES-520 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.

It is equivalent to Ci62 Portable Spectrophotometer, Ci64 Quality Control Spectrophotometer, Ci64UV Portable Spectrophotometer of X-rite & CM-2600d Spectrophotometer, CM-600d Portable Spectrophotometer, CM-700d Portable Spectrophotometer of Konica Minolta.

Feature:

  • Perfect combination of beautiful appearance and the human body mechanics structural design;
  • D/8 geometrical optics, conforms with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
  • Use long life and low power consumption combined LED light source, including UV/excluding UV;
  • Switchable Φ8/4mm aperture, adapt to more samples; support both SCI and SCE at the same time;
  • Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission; High electronic hardware configuration: 3.5-inch TFT color LCD, Capacitive Touch Screen, concave grating, 256 image Element Double Arrays CMOS Image Sensor;
  • USB/Bluetooth 2.1, dual mode, widely useful;
  • Super stain-resistant and stable standard white calibration plate;
  • Large capacity storage space, over 20,000 measurement data;
  • Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers’ demand for color measurement; Camera Locating Function, better position;
  • PC software has a powerful function extension.

Application Industry:

CES-520 Grating Spectrophotometer can easily achieve color transferring, and be used as a precision instrument for color matching system. It’s widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories. Spectrophotometer can measure just about anything, including liquids, plastics, paper, metal and fabrics, and help ensure that color remains consistent from conception to delivery

Technical Parameters:

ItemsCES-520CES-519CES-518
Optical GeometryReflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
Integrating Sphere Size48mm
Light SourceCombined LED Light, UVCombined LED Light
Light
Spectrophotometric ModeConcave Grating
Sensor256 Image Element Double Array CMOS Image Sensor
Wavelength Range400-700nm
Wavelength Interval10nm
Semiband Width10nm
Measured Reflectance Range0-200%
Measuring ApertureDual Aperture: 10mm/8mm &CustomizedSingle
5mm/4mmAperture:Aperture:
8mm/4mm/1×3mm8mm/10mm
SpecularSCI&SCE
Component
Color SpaceCIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color DifferenceΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v,
FormulaΔE(Hunter)
Other ColorimetricWI(ASTM E313, CIE/ISO, AATCC, Hunter),
IndexYI(ASTM D1925, ASTM 313),
TI(ASTM E313, CIE/ISO),
Metamerism Index MI, Staining Fastness, Color Fastness, Color
Strength, Opacity, 8° Glossiness
Observer Angle2°/10°
IlluminantD65, A, C, D50, D55, D75,D65, A, C, D50,D65, A, C, D50
F1, F2, F3, F4, F5, F6, F7,D55, D75, F2,
F8, F9, F10, F11, F12F7, F11
Displayed DataSpectrogram/Values, Samples Chromaticity Values, Color
Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time2.6s
RepeatabilityMAV/SCI: ΔE*≤0.03MAV/SCI:MAV/SCI:
ΔE*≤0.05ΔE*≤0.06
Inter-instrumentMAV/SCI: ΔE*≤0.15MAV/SCI:MAV/SCI:
ErrorΔE*≤0.2ΔE*≤0.4
Measurement ModeSingle Measurement, Average Measurement
Locating MethodCamera View Finder Locating
BatteryLi-ion battery. 5000 measurements within 8 hours
DimensionL*W*H=184*77*105mm
Weight600g
Illuminant Life Span5 years, more than 3 million times measurements
Display3.5-inch TFT color LCD, Capacitive Touch Screen
Data PortUSB, Bluetooth 4.0USB
Data StorageStandard 2000 Pcs, Sample 20000 Pcs
LanguageEnglish, Chinese
Operating0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Environment
Storage-20~50℃, 0~85%RH (no condensing)
Environment
Standard AccessoryPower Adapter, Built-In Li-ion Battery, User Guide, PC Software,
White and Black Calibration Cavity, Dust Cover
Optional AccessoryMicro Printer, Powder Test Box

In India, we have various customers from Mumbai, Delhi, Bangalore, Chennai, Hyderabad, Ahmedabad, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Visakhapatnam, Indore, Bhopal, Patna, Vadodara, Ghaziabad, Ludhiana, Coimbatore, Madurai, Nashik, Srinagar, Aurangabad, Dhanbad, Allahabad and Ranchi in India.

We also export our range of products to worldwide countries like USA, Canada, Chile, United Kingdom – UK, Spain, Germany, Italy, Dubai, Abu Dhabi, U.A.E, Oman, Saudi Arabia, Singapore, Kuwait, Iran, Indonesia, Thailand, and many more as well.
