Gloss Meter – CES 407 (20°/ 45°/ 75°)

Synonym : Glossometer

Category: Appearance, Coating Inspection, Gloss & Reflectance

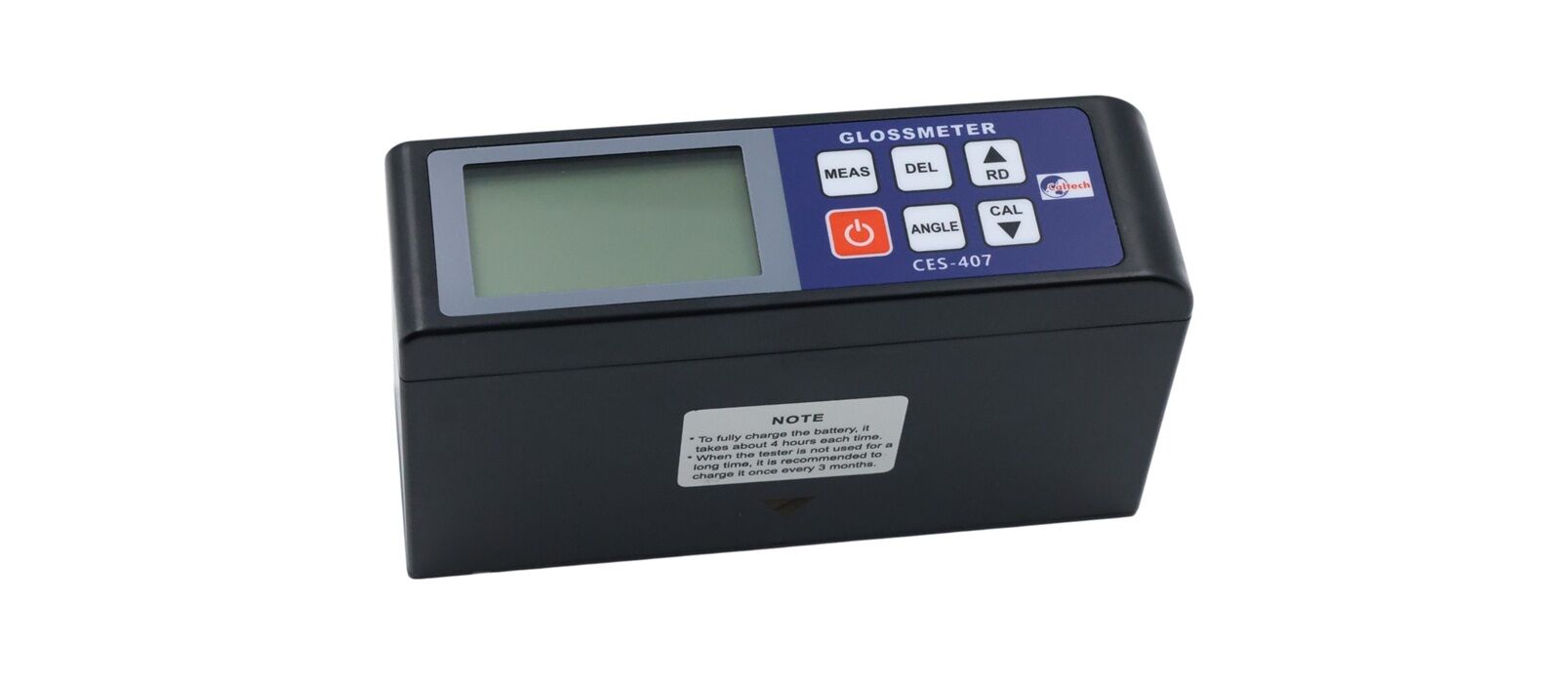

Caltech Instruments Pvt Ltd India offers Gloss Meter (Integral Type) CES-407.

Gloss Meter CES-407 have different kinds of measurement angles 20°/ 45°/ 75°. Generally, 20° Degree applies to High Gloss Materials, 60° Degree applies to Medium Gloss Materials, 85° Degree applies to Low Gloss Materials. Two additional angles are used for other materials. An angle of 45° Degree is specified for the measurement of ceramics, films, textiles and anodized aluminum, whilst 75° Degree is specified for paper and printed materials.


* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
* Accurate measurement, good repetitiveness.
* Automatic calibration. Small in size, easy to carry.
* Intelligent design, rapid measurements.
* Able to store 254 groups of measurements.
* Optional – Applies USB, Bluetooth data output.
* Built-in lithium ion rechargeable battery.
* Backlight display, suitable for low light environment.


Model CES-407
Display 4 Digital Backlight LCD
Measuring Angle 20°/ 45°/ 75°
Range 0.1 to 200 Gloss Units
Gloss Unit GU
Accuracy ±1.5GU against reference standard JJG 696-2002
Resolution 0.1
Repeatability ±0.5GU
Measuring Area 7x14mm (Ellipse)
Data Memorized 254 Groups
Operating Conditions Temp. 0~40°C Humidity: <85%RH
Power Supply 3.7 V Lithium Ion Rechargeable Battery
Dimensions 140 x 45 x 75 mm
Weight 305 g Including Batteries

It is equivalent to Novo-Gloss 45 Glossmeter.
