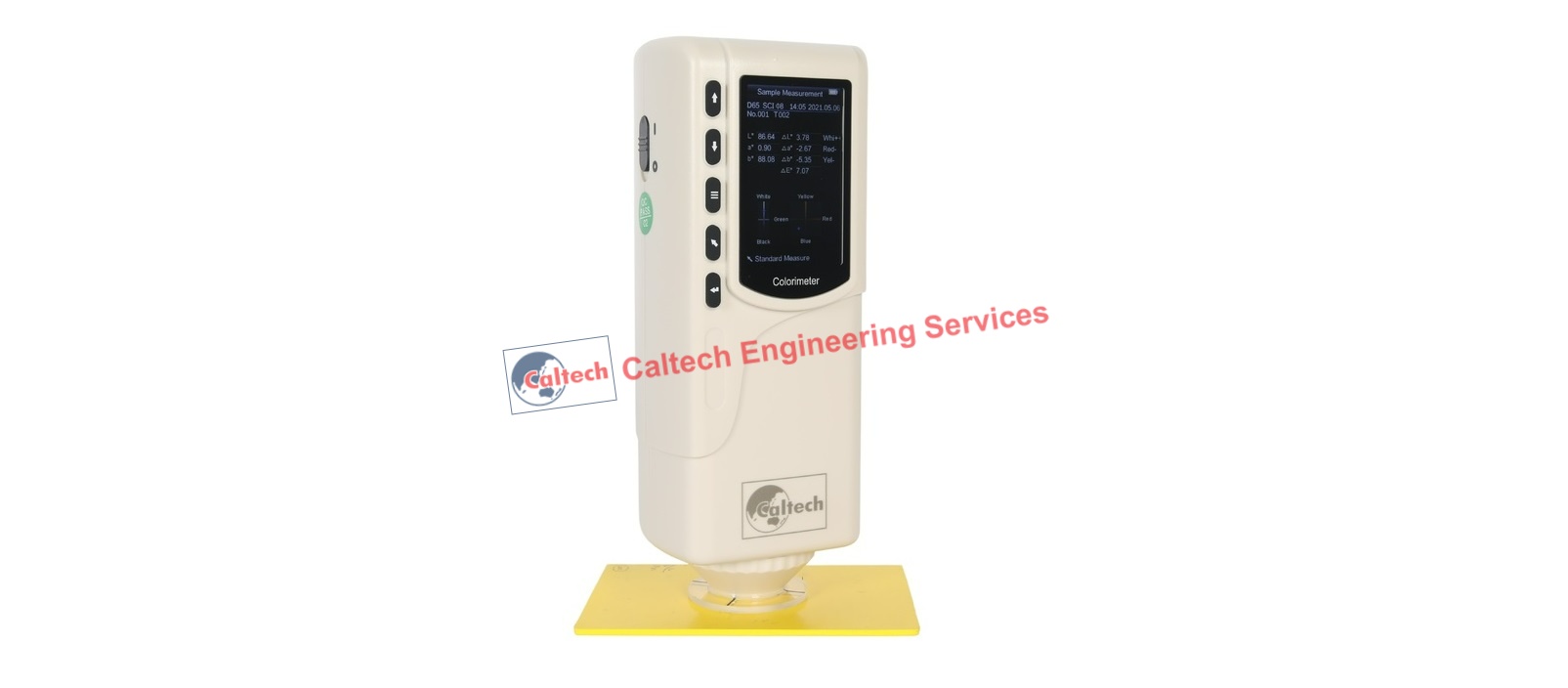

CES-512 Precision Colorimeter

Synonym : Colorimeter, Chroma Meter, Color Testing Instrument, Colour Meter, Color Measurement Instrument

Category: Appearance, Coating Inspection, Colorimeter

Caltech India offers CES-512 is a precision colorimeter with 45°/0° viewing angle. It can measure accurately in 45° illumination /0° receiving under the SCE mode.

Our R&D team concentrates on customer needs and develops series of high-cost and high-quality products. CES-512 is a precision colorimeter with 45°/0° viewing angle after NH310, NH300, NR200, NR110 and NR100 colorimeter. CES-512 colorimeter has strong functions which applied a number of differential innovative technologies. It can measure accurately in 45° illumination /0° receiving under the SCE mode. Plus, its CSCQ3 software helps perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.

Product Advantages:

  • Built-in white plate parameters. No need to calibrate each time which can perform measurement quickly.
  • Double Locating: Illuminating locating and precise cross locating.
  • Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
  • New 45°/0° Optical Path Design: Significantly improve the measurement stability and precision.
  • 8mm Measuring Aperture
  • Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
  • Configure CQCS3 software. Connect PC computer to realize more functions.
  • Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
  • Hand-head structure: small and convenient; make the measurement easier.
  • Exquisite appearance: adopts traditional and fashionable aesthetic designs.

Main Technical Parameters:

ModelCES-512 Precision Colorimeter
Illuminating/Viewing Geometry45°/0°
Measuring ApertureΦ8mm
Measurement End-faceLarge stable end face and small concave-convex end face
DetectorSilicon photoelectric diode
LocatingIlluminating Locating/Cross Locating
Color SpaceCIEL*a*b*C*h* CIEL*a*b*
CIEXYZ
Color Difference Formula△E*ab △L*a*b* △E*C*h*
Light SourceD65
Light Source DeviceLED blue light excitation
Errors Between Each Equipment≤0.80ΔE*ab
Storage100pcs standards 20000pcs samples
RepeatabilityStandard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Weight500g
Dimension205×67×80 mm
Power sourceRechargeable lithium-ion battery [email protected]
Lamp Life5 years, more than 1.6 million measurements
Charging TimeThe first charging time is 8 hours–100% electricity
PC SoftwareCQCS3 Software
Printer (optional)Miniature thermal printer

In India, we have various customers from Mumbai, Delhi, Bangalore, Chennai, Hyderabad, Ahmedabad, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Visakhapatnam, Indore, Bhopal, Patna, Vadodara, Ghaziabad, Ludhiana, Coimbatore, Madurai, Nashik, Srinagar, Aurangabad, Dhanbad, Allahabad and Ranchi in India.

We also export our range of products to worldwide countries like USA, Canada, Chile, United Kingdom – UK, Spain, Germany, Italy, Dubai, Abu Dhabi, U.A.E, Oman, Saudi Arabia, Singapore, Kuwait, Iran, Indonesia, Thailand, and many more as well.
