Digital Pull-Off Adhesion Tester

Synonym : Digital Pull-Off Adhesion Tester, Adhesion Strength, Adhesive Strength, Adhesive Strength Testing, Adhesion Gauge, Adhesion, Adhesion Test, Coating Adhesion Test, Pull-Off Adhesion, Adhesion Tester, Adhesion Testers, Adhesion Testing, Portable Adhesion Tester, Dolly Pull Off Test

Category: Adhesion Tester, Coating Inspection, Pull-Off Adhesion Testing

Digital Pull Off Adhesion Tester is now available in India.

Caltech India offers CES 350 – Digital Pull Off Adhesion Tester. Adhesion Tester is used with high precision digital pull off test for adhesion and bond strength testing of all types of paint, films, coatings, laminates, adhesives, metals plastic coatings, concrete coats, automobile car paint, pull off test for epoxy coating, mortars and plasters and other materials. This is also called as dolly pull off tester, dolly adhesion tester or paint pull tester.

CES 350 – Digital Pull-Off Adhesion Tester is very handy is an easy to use, lightweight hydraulic adhesion tester that applies an increasing level of pull off force to a dolly adhered to the surface under test simply by pumping hand pump. This is suitable for carrying adhesion test as per ASTM D4541 & ISO 4624 Specification.

The pull off adhesion testing equipment has connecting socket head for self-alignment ensuring the pull off force is always applied 90º to the coating even on uneven substrate surfaces. The self-adjusting feature results in extremely accurate and reproducible adhesion test results. This test method covers a procedure for evaluating the pull-off strength (Referred to as adhesion) of a coating system from metal substrates. This test method maximizes tensile stress as compared to the shear stress applied by other methods, such as scratch or knife adhesion, and results may not be comparable. Results obtained are in Mpa or psi as per choice of customer. The test is performed by securing a self-aligning quick coupling (dolly) perpendicular to the surface of the coating with an adhesive. After the adhesive is cured, a testing apparatus is attached to the loading fixture and aligned to apply tension perpendicular to the test surface. The force applied is gradually increased and monitored until either a plug of coating material is detached, or a specified value is reached.

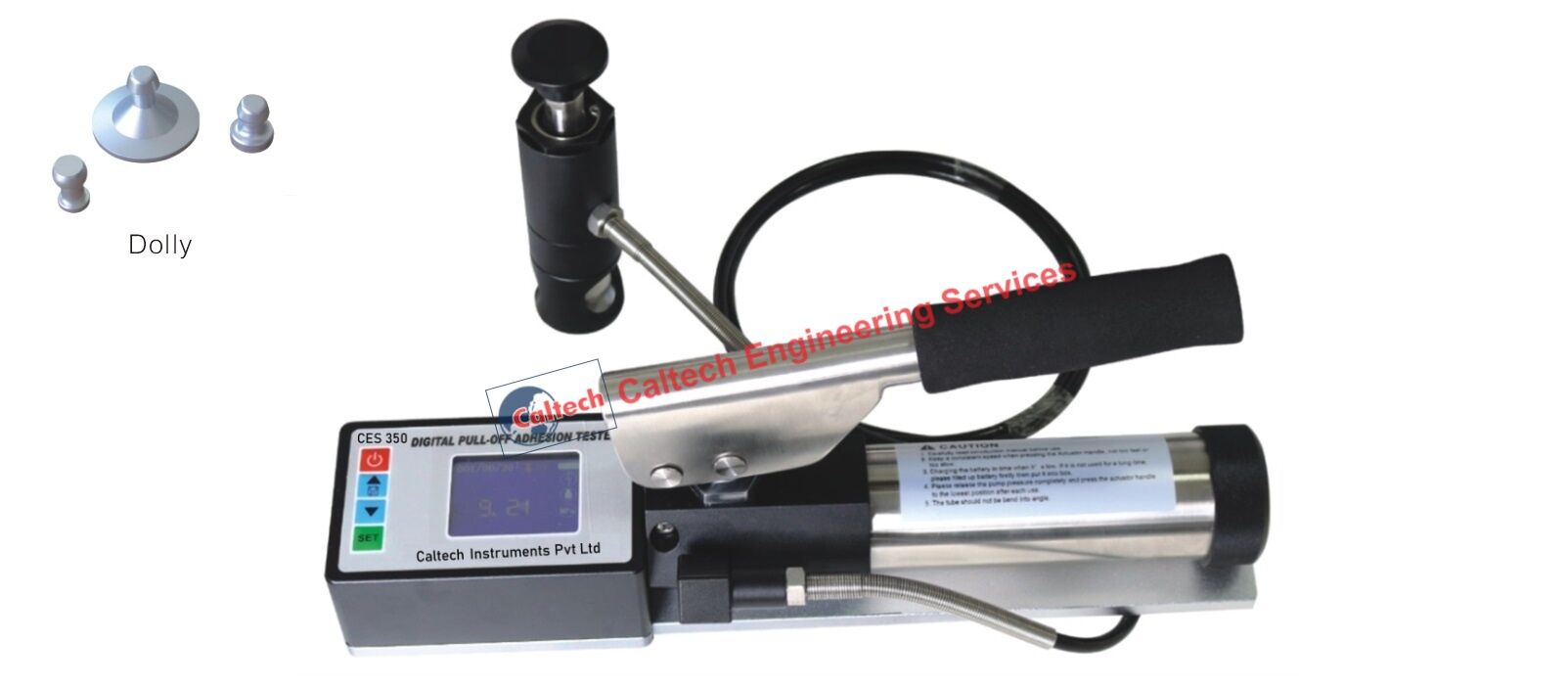

Digital Pull-Off Adhesion Tester model CES-350 is a portable, hand-operated instrument which is used to measure the force required to pull a specified test diameter of coating away from its substrate using hydraulic pressure. The pressure is displayed on a digital LCD and represents the coating’s strength of adhesion to the substrate. It evaluates the adhesion (pull-off strength) of a coating by determining the greatest tensile pull-off force that it can bear before detaching. breaking points, demonstrated by fractured surfaces, occur along the weakest plane within the system consisting of dolly, adhesive, coating layers and substrate. Quality adhesion tester now available in India.

It also complies as per IS 16719 Polyurethane coatings for the interior and exterior of steel pipe and fittings.

Standards: ASTM D4541, ISO 4624

Main Technical Parameters:

  • Dolly Size: 20mm (Standard); 10mm, 14mm, 50mm (Optional)
  • Resolution: 0.01MPa(1psi)
  • Accuracy: ±1% Full scale
  • Max. Pull-off Pressure: Φ10mm dolly →0-80 MPa; Φ14mm dolly→0-40 MPa; Φ20mm dolly→0-20 MPa; Φ50mm dolly→0-3.5 MPa;
  • Power: Built-in rechargeable lithium battery, and standard configuration charging adapter.
  • Adhesion Tester Size: 360mm×75mm×115mm (L x W x H)
  • Adhesion Tester Weight: 3KG

Ordering Information:

CES 350 – Digital Pull-Off Adhesion Tester
CES 2520 10mm Dolly (10 pcs/package)
CES 2521 14mm Dolly (10 pcs/package)
CES 2522 20mm Dolly (10 pcs/package)
CES 2523 50mm Dolly (10 pcs/package)
CES 2525 Cutting Tool
3M Adhesive
