Concrete Adhesion Tester

Synonym : Adhesion Tester for Coatings on Concrete, Concrete Coating Adhesion, Concrete Coating, Concrete Adhesion Test, Adhesion Tester, Adhesion Testers, Adhesion Testing

Category: Adhesion Tester, Coating Inspection, Pull-Off Adhesion Testing

Caltech India offers manual hand operated pull off adhesion tester which is easy to operate and fully portable, provides a numerical value of adhesion test for paints, coating, tile adhesive, concrete coating etc. Applications include : paint or plasma spray on bridge decking, coatings on steel, aluminum or concrete, etc.
Complete pull off adhesion tester comes in a carrying case – ideal for site tests. Hand operated so you don’t have to worry about a power supply!
A test dolly is bonded to the coating using an adhesive and allowed it to cure for specified time. It allows to get best strength

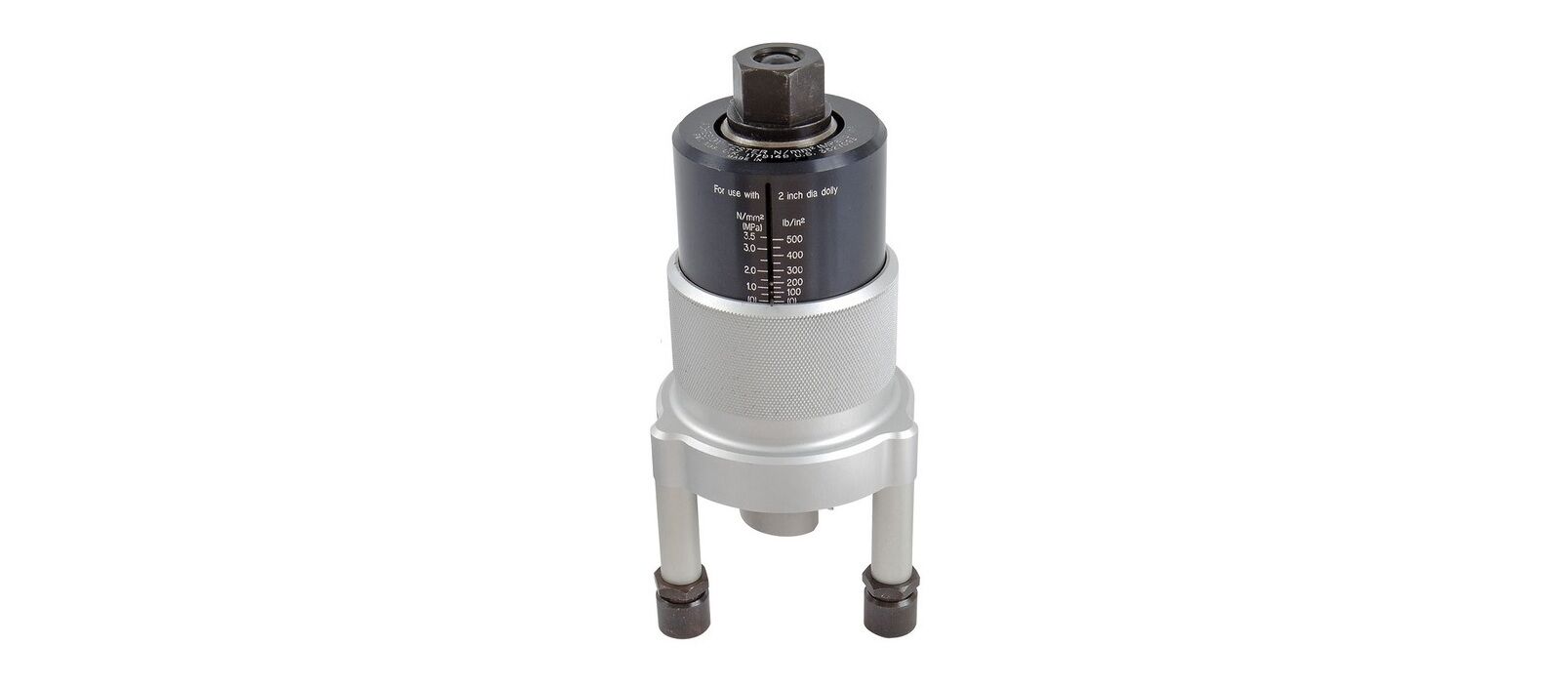

The Concrete Adhesion Tester 1064 houses a spring arrangement which applies a lift force to the dolly.
When the dolly is pulled off the surface, an indicator on the scale shows the numerical value of adhesion expressed in terms of the force required to remove the dolly. After the coating process, adhesion test values provides strength of the bond between substrate and coating, or between different coating layers or the cohesive strength of some substrates. routine testing is used as part of inspection and maintenance procedures to help detect potential coating failures. adhesion tester price is available at the most economical and suitable for site applications.

Different models are available to test from low adhesion values of 5-30 PSI(0.05-0.2N/mm2)up to 500-3200PSI(5-22N/mm2)
It can be used in accordance with ASTM D4541, BS EN 24624, and ISO 4624

We also repair and calibrate all types of defelsko, elcometer pull off adhesion testers

Ordering Information:

  • 1064/1: Concrete Adhesion Tester – Scale 1: 0-3.5 MPa (0-500 PSI)
  • 1064/2: Concrete Adhesion Tester – Scale 2: 0-7 MPa (0-1,000 PSI)
  • 1064/3: Concrete Adhesion Tester – Scale 3: 0-15 MPa (0-2,000 PSI)
  • 1064/4: Concrete Adhesion Tester – Scale 4: 0-22 MPa (0-3,200 PSI)
  • 1064/5: Concrete Adhesion Tester – Scale 5: 0-0.2 MPa (0-30 PSI)

In India, we have various customers from Mumbai, Delhi, Bangalore, Chennai, Hyderabad, Ahmedabad, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Visakhapatnam, Indore, Bhopal, Patna, Vadodara, Ghaziabad, Ludhiana, Coimbatore, Madurai, Nashik, Srinagar, Aurangabad, Dhanbad, Allahabad and Ranchi in India.

We also export our range of products to worldwide countries like USA, Canada, Chile, United Kingdom – UK, Spain, Germany, Italy, Dubai, Abu Dhabi, U.A.E, Oman, Saudi Arabia, Singapore, Kuwait, Iran, Indonesia, Thailand, and many more as well.
