Cross Hatch Cutter Accessories

Synonym : Cross Hatch Cutter Accessories, Cross Cuts Adhesive Tapes, Adhesive Tape, Paint Adhesion Cutter, Cross Hatch Accesories, Cross Cut Tester, Cross Hatch Blades

Category: Adhesion Tester, Coating Inspection, Cross Hatch Adhesion Testers

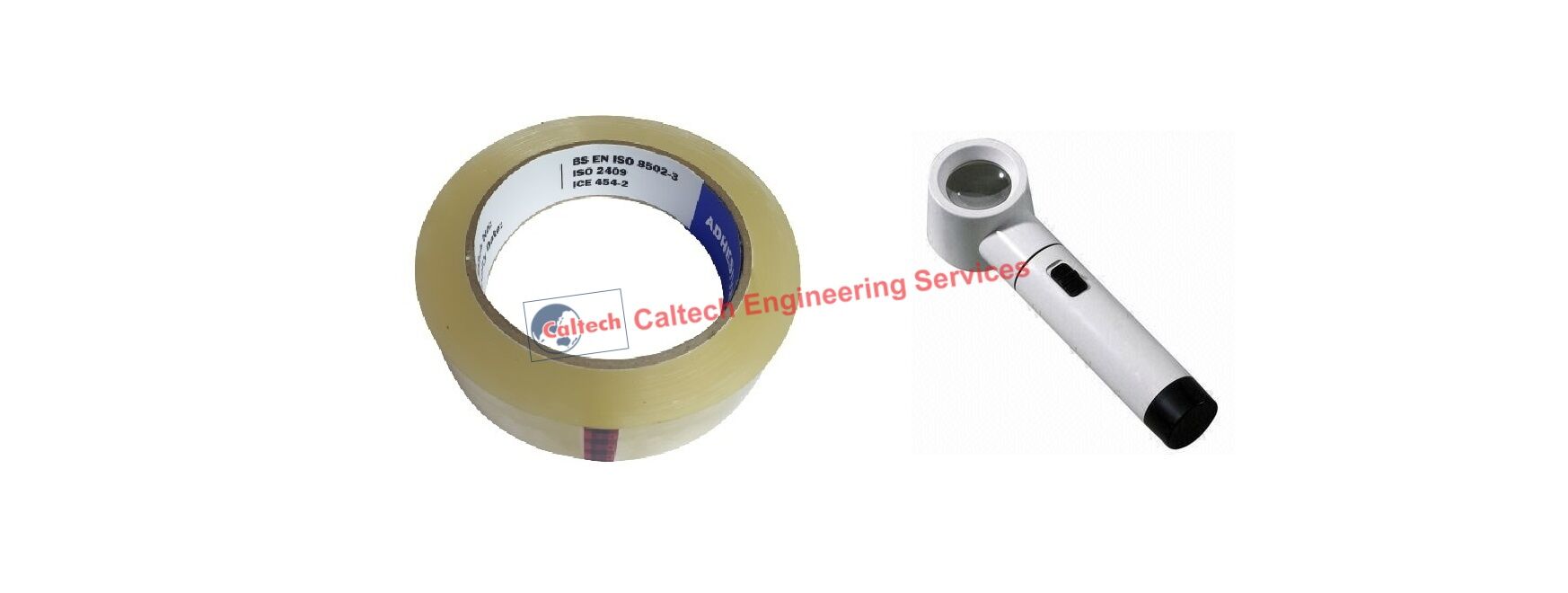

Caltech India offers Cross Hatch Cutter Accessories. Recommended accessories to be used when using the Cross Hatch Cutter. Both the viewing lens and tape are detailed in the ISO2409 standard.

Simple operation, each cross hatch cutter has 6 cutting blades spaced either 1mm or 2mm apart, one cutting pass makes 6 cuts in the coating, a second pass at 90° makes a square lattice pattern. Apply special adhesive tape over cut section and within 5 minutes remove tape. Classify the cut area according to the relevant national standard classification guide. This test conforms to BS 3900:E6, ASTM D3359, BS/DIN EN ISO 2409

The cutting blades are ground onto 6 cutting sides, so that when one cutting side becomes blunt there are a further 5 cutting sides to use. Therefore giving a 1/3 rd extra life over conventional 4 sided models.

Ordering Information:

X1002 Adhesion Test Tape complies with ISO 2409
X1022 Viewing Lens complies with ISO 2409
