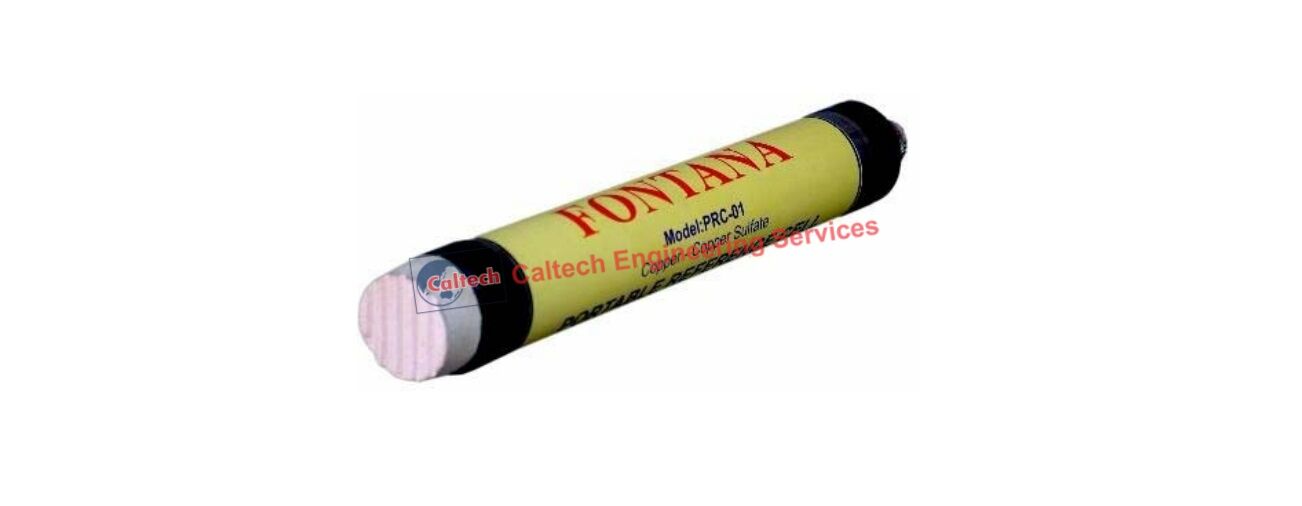

Portable Reference Cells – Fontana 101F Cu-CuSO4

Portable Half Cell Reference Electrode – Copper/Copper Chloride

Category: Cathodic Protection, Reference Electrodes

Fontana Instruments offers new portable half-cell reference copper- copper sulphate electrode (Cu-CuSO4) to measure electrical potentials for corrosion engineers quickly at site.


Rugged chemically resistant and full window viewing tube body made from special plastic. Long term saturated solution-retaining capability. Specially designed low resistance porous ceramic tip. Excellent shelf life and highest sensing area allows measurements with stability. Quick connection with knurled holder to avoid error in measurements. Capability to connect extension handles.


Reference cell without chlorides (<500ppm) are recommended.


Dimensions 32mm OD x 175mm long (1.25” x 7” long)
7.5 Oz (220gms)
Stability ± 5mv
Temperature 0-50º C
Certification Every batch is tested and factory test certificate provided.
Safety Material safety data sheet also available on request
Shipping Reference cells are shipped quickly based on quantity ordered
