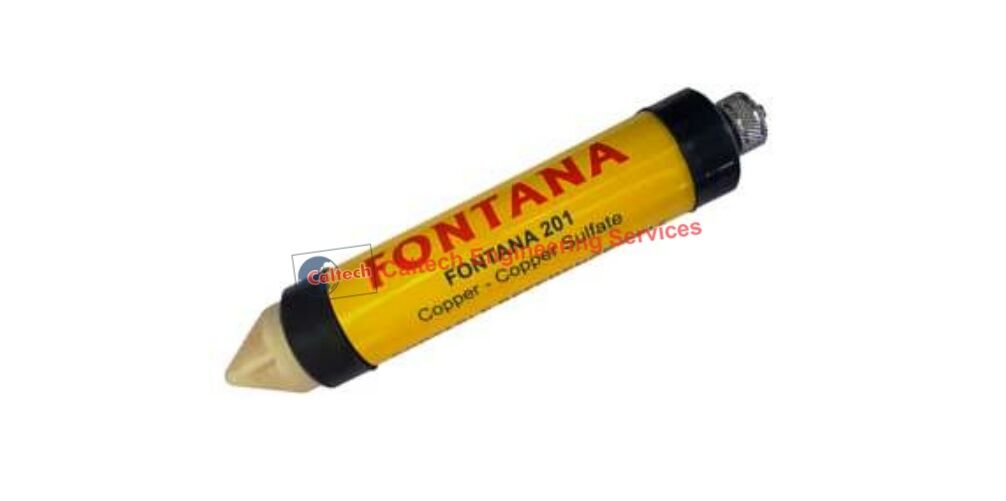

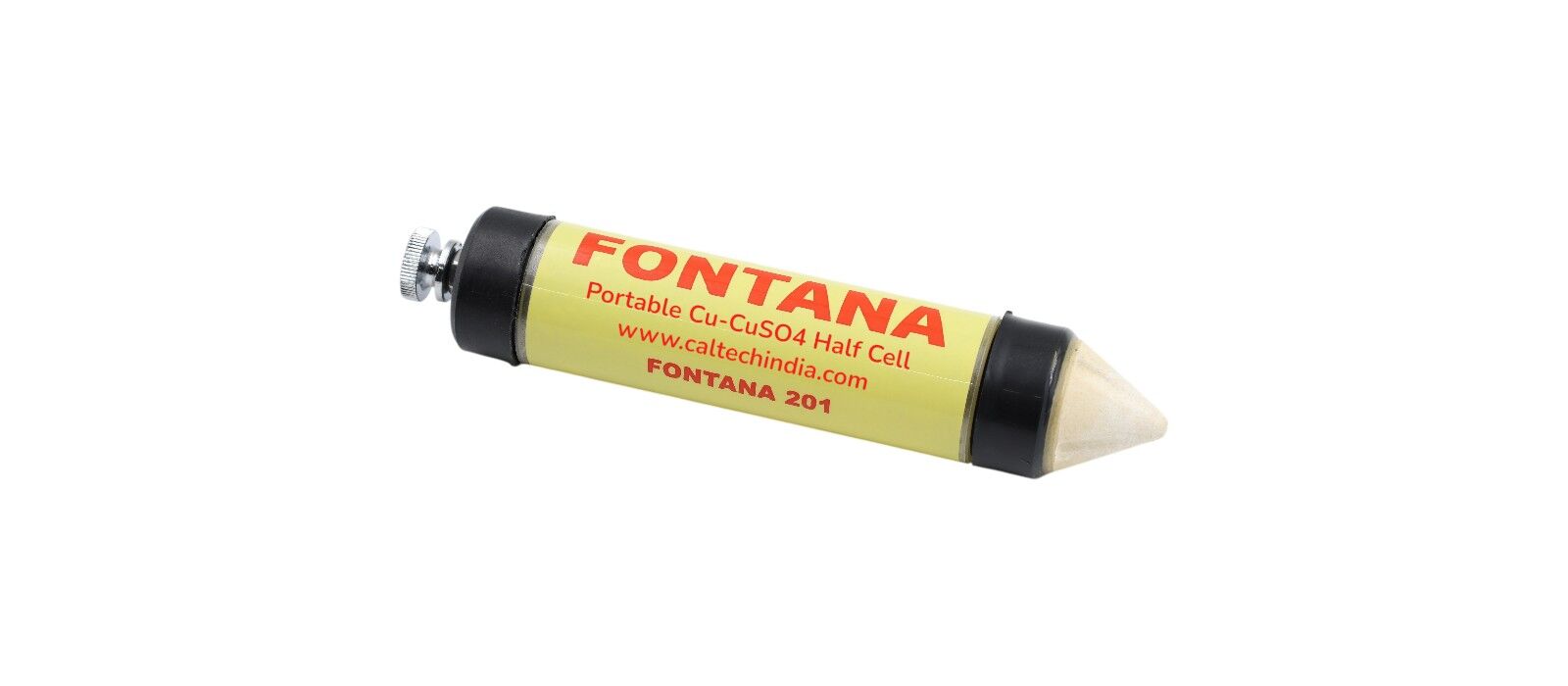

Portable Half Cell Reference Electrode – Fontana 201C Cu-CuSO4

Category: Cathodic Protection, Reference Electrodes

Fontana Instruments offers new portable and Fotana-201C half-cell reference copper- copper sulfate electrode to measure electrical potentials for corrosion engineers quickly at site. Suitable for Pipe to Soil potentials, Close Interval Surveys, Structure to Cell, and Lab use.

Features:

Rugged chemically resistant viewing tube body made from special plastic. Long term saturated solution-retaining capability. Specially designed low resistance long lasting porous ceramic tip. Excellent shelf life and highest sensing area allows measurements with
stability. Fontana-201C has quick connection with knurled holder to grip wire for proper measurements with capability to connect extension handles.

Model: Fontana-201C

Applications: Reference cell without chlorides are recommended.

Dimensions: 32mm OD (1 ¼”) x 150 (6”) mm long

Stability: ± 5mv

Temperature: 0-50º C

Certification: Every batch is tested and factory test certificate provide
