Polarization Cell

Synonym : Polarisation Cell, Grounding Cell, Cathodic Protection Polarisation Cell, Kirk Cell, Solid State Polarization Cell

Category: Cathodic Protection, Polarization Cell

Caltech India offers Polarization Cell.

Proven, Sturdy, Durable and Economical- Also called grounding cells, protects against dangerous voltage

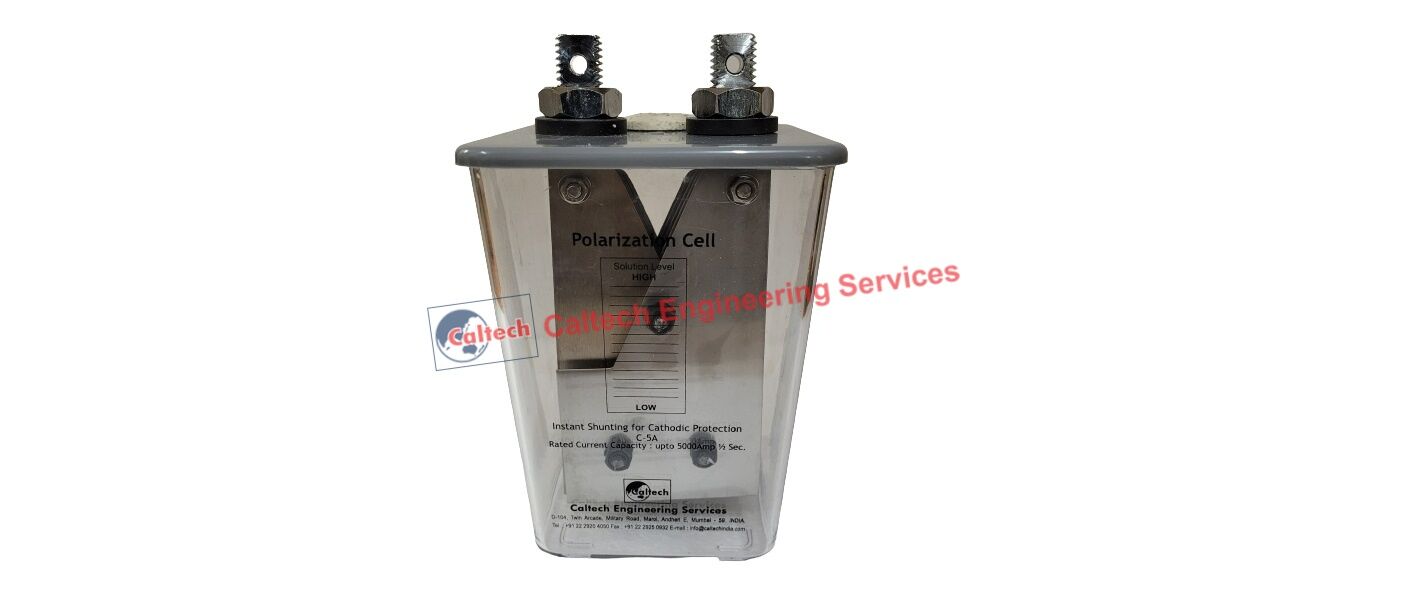

Polarization cell protects against induced AC current and ground fault current on buried pipelines. Polarization cell is also known as Kirk Cell. Polarisation cells permit low-level voltage of cathodic protection to uniform flow and prevent hazardous voltages. Polarization cell consist of multiple plates of steel arranged, fixed and immersed in 30% KOH (Potassium Hydroxide) solution. Specially selected oil layer stop the evaporation of solution to some extend. It is advisable to verify the solution level periodically. Polarization cell is fitted in transparent body to check solution level. Normal storage of cell does not have any internal voltage and act as a grounding switch in presence of high voltage. Polarisation cell works on electrochemical principle. Installed plates with large surface area polarize and allow in developing safe DC voltage suitable for cathodic protection. As the voltage increases from DC or AC voltage, the polarisation film breaks and polarization cell conduct current. Specially designed Kirk cells have properties to retain solution level to the maximum period with specially added floating oil. Kirk cells are designed to protect personnel and equipment from electrical disturbances. Buy Polarization cell from us having features like better durability and sturdiness.

Polarisation cells control the flow of potentially dangerous AC and DC current in buried surface protected oil & gas, water pipelines on the buried metallic structures. Grounding cells needs to be installed with high precaution of gas ventilation. Improper installation could produce hazardous gases resulting to cause explosion and harmful to operators. The polarization cells are safe while using as per the rated capacity given in the information section to prevent corrosion.

Polarisation Cell

ModelRated Capacity pass ½ Sec faultsPares of PlatesRated  Capacity     Amp Max.  Temp RangeEmpty WeightWeight with Solution
C-5A50005300- 60 ºC2.3 Kg5.1 Kg
C-25A25000121750- 60 ºC32.8 Kg41.0 Kg
C-50A49500253500- 60 ºC42.0 Kg85.0 Kg
