Automatic Flash Point Tester

Category: Coating Inspection, Flash point, Performance

Caltech India offers latest Automatic Flash Point Tester is designed by rapid equilibrium closed cup method. It can rapidly test flash point of coating, paint (water-based paint), varnish, lacquer base, adhesive, solvent, fatty acid methyl tester (FAME), chemical reagent, flavor, spices, solid chemical products, viscous chemical products, air fuel, oil, petroleum and related products. Automatic Flash Point Tester conforms to international standards like ISO 3679, ISO 3680, ASTM D 3278, ASTM D3828 etc.

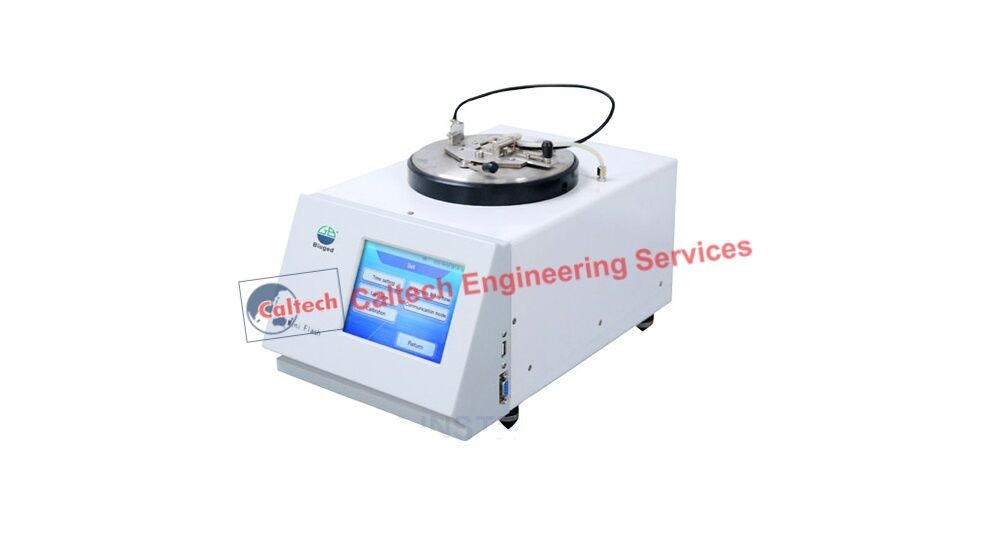

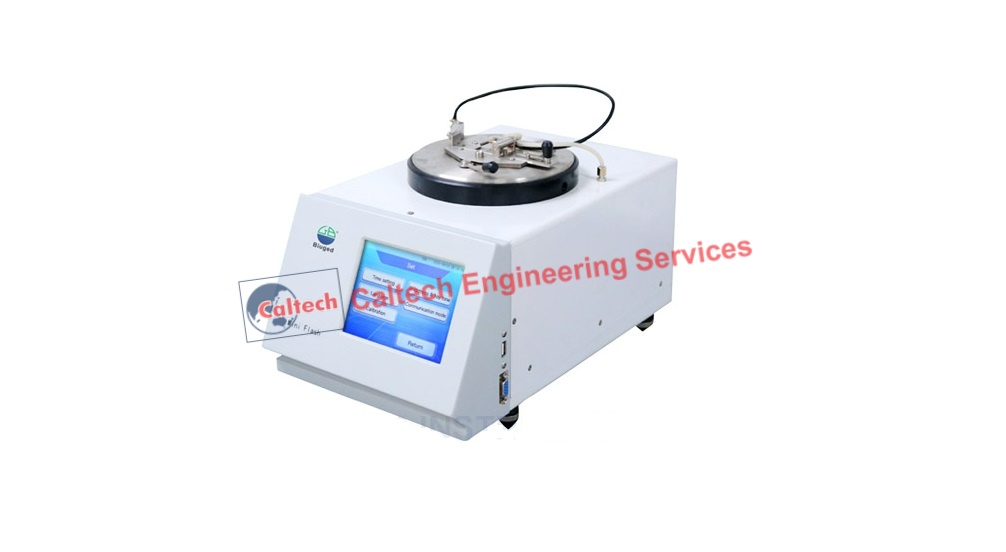

Automatic Flash Point Tester Display

Characters:

  • Can detect the flash point at a specific temperature between -35ºC and 105ºC (BGD 240/1)or Room Temperature to 105ºC(BGD 240/2)at average rate heating.
  • All functions are achieved through the membrane keypad and digital display.
  • Users can select the built-in test procedures or set its own test parameters also can modify the preinstall program to implement custom non-standard test.
  • Built in two test procedures: Rapid balanced mode and average rate heating mode
  • Various parameters, such as the heating mode, time, temperature and the average rate heating can be set by the user themselves.
  • Planning board action, the decline of the ignition, the detection of flash point is done automatically.
  • A voice is prompted to user at each operation, at the end of the test there will be voice prompts, too.
  • The gas ignition sources can be provided directly by the laboratory, you can also use the portable butane gas tank.
  • Built-in cooling module is used to shorten the cooling time between the two tests.
  • Amend barometric pressure automatically.

Main Technical Parameters:

  • Flash Point Temperature Range: For BGD 240/1:-35ºC to 105ºC;For BGD 240/2: RT to 300ºC
  • Tested Flash Point Temperature Accuracy: 0.5ºC
  • Sample Volume: 2ml
  • Heating Rate: Customize, quickest speed 5ºC/min, longest duration 99min, highest temperature 100ºC for BGD240/1 and 300ºC for BGD240/2.
  • Cooling Method: Built-in cooling module (without external cooler 0ºC~100ºC)
  • Output Interface: Computer RS232, printer (optional)
  • Size: 400×220×170mm
  • Net Weight: 6 KG
  • Operate Temperature: 15ºC~35ºC
  • Power Supply: 220/240V,50/60Hz
  • Come with Accessories: Steam source regulation component, Silicone tube, 2ml injector, Thermometer 0~100ºC, O-Type Seal Ring(5pcs)
  • Optional Accessories: Special injector for high viscosity (thick) sample, Powdery object injector 4ml injector, Stand oil of Flash Point (49.7ºC)

Ordering Information:

BGD 240/1 — Automatic Flash Point Tester(-35~105ºC)
BGD 240/2 — Automatic Flash Point Tester(RT~300ºC)
