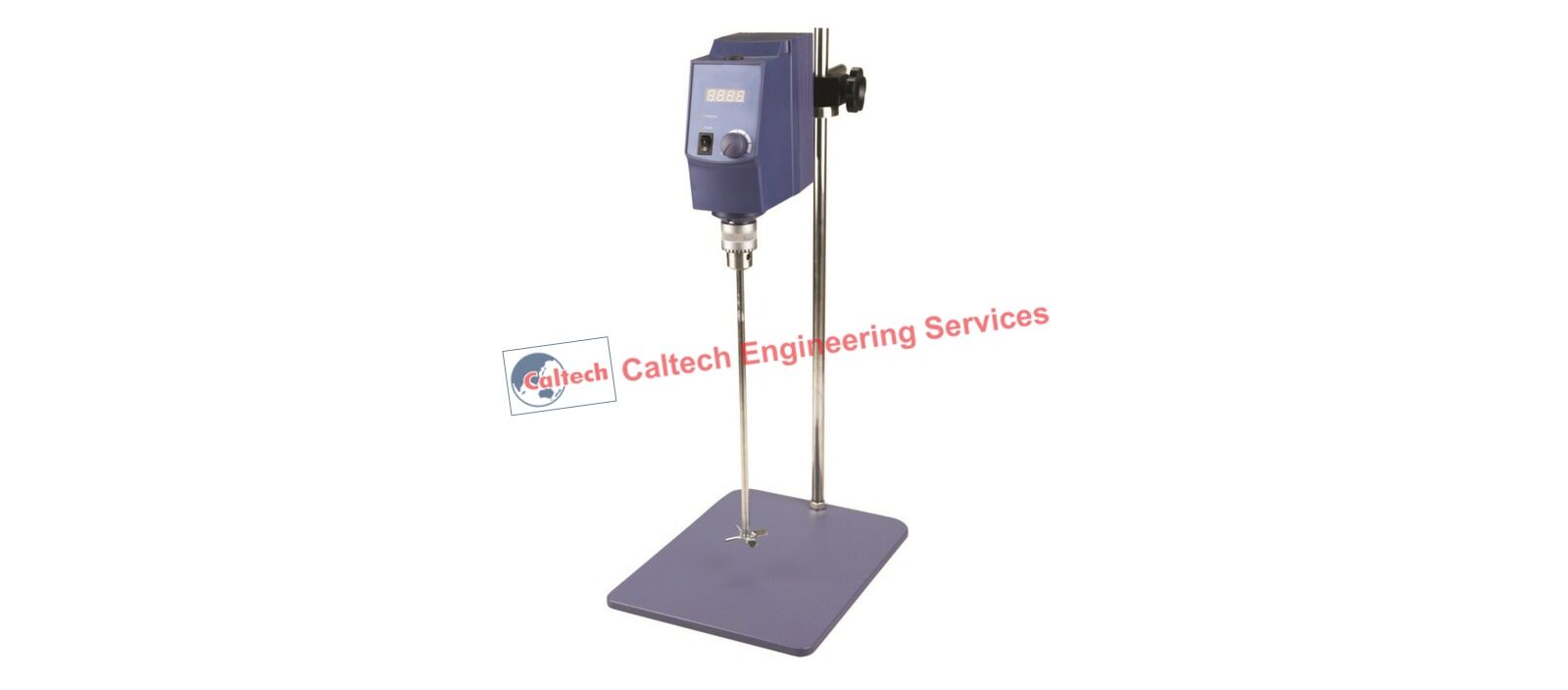

Caltech India offers Overhead Stirrer. These newest stirrers are of the highest quality. The core a direct current brushless motor is explosion-proof and overcomes the disadvantages of traditional stirrers. The stirrers can operate under high load for an extended period of time without any need for maintenance.

Features:

  • International safety certification:get CE, cTUV us and FCC safety certification issued by German TÜV company
  • Whole machine is explosion-proof
  • Setting safety circuit: Automatically cut off the circuit in the event of the motor overheating and other exceptional circumstances.
  • Overload protection:Motor would automatically stop in case of continuous overload.
  • Motor protection:When motor is over load, short circuit or any special situation, the machine will alarm and shut down.
  • Anti-spill samples:PLC control system starts up smoothly, prevent samples overflow.
  • Closed case:is accordance with international popular DIN/EN60529 standard, high protection gradeIP42, can prevent liquid to splash into the machine and lead to corrosion of the circuits.

Main Technical Parameters:

Ordering Information   →BGD 701BGD 702BGD 703BGD 704
Parameters   ↓
Max. Stirring Capacity(water)20 L40 L
Motor Rating Input, W60 W120 W
Motor Rating Output, W50 W100 W
Speed Range, rpm0-2,200 rpm50-2,200 rpm0-2,200 rpm50-2,200 rpm
Speed Display Accuracy, rpm±3 rpm±3 rpm
DisplayLEDLCDLEDLCD
Speed Display Resolution1 rpm1 rpm
Max. Torque40 N.cm60 N.cm
Max. Viscosity10,000 mPa.s50,000 mPa.s
Chuck Range Diameter0.5-130.5-13
Dimension(W×H×D)83x220x186 mm83x220x186 mm
Weight2.4 kg2.4 kg2.8 kg2.8 kg
Packing List①  LCD or LED digital overhead stirrer head—-1 pc
②  Flat Base —1 pc
③  Main Pole——1 pc
④  Dispersing pole with four leaf——-1 pc
