An CES 396 Automatic Film Applicator is a motorized laboratory instrument designed to apply uniform, precise, and repeatable wet films of paints, inks, adhesives, and coatings on flat substrates for testing and quality control.
Automatic Paint Film Applicator / Motorized Film Applicator / Automatic Coating Applicator / Automatic Drawdown Bar Coater
Caltech India is the leading manufacturer and supplier of CES 396 Automatic Film Applicator. An Automatic Paint Film Applicator, also referred to as an Automatic Coating Applicator, Motorized Film Applicator, Automatic Drawdown Coater, Automatic Bar Coater, Automatic Coating Drawdown Applicator or Automatic Film Coating Machine, is a laboratory instrument designed to apply precise and uniform wet films of paints, inks, adhesives, and coatings on flat substrates for testing and quality control. The Automatic Wet Film Applicator uses an electric push rod to achieve the coating movement of the wet film maker or wire rod, which can effectively avoid the instability of manual coating. This machine adopts microcontroller control technology: touch lock screen display, selection of left and right travel speed and displacement, real-time display of coating actual movement distance during operation: coating rack can be returned to electric or manual mode, with a simple and clear operation interface, greatly convenient for operators to use.
CES 396 Automated Film Applicator enables experimental chemists to conveniently draw down precise coating film on the different substrates so as to reduce and eliminate errors caused by manual factors. Factors affecting the draw down are the shear rate and downward force applied to the applicator tool. The Motorised Film Applicator sucks test paper smoothly on the vacuum bed. It greatly improves the reproducibility of paint film.
CES 396 are the newest automated film applicators, comparing the traditional products, they have:
- Adjustable variable speed: 2mm/s-200mm/s
- High precision linear guide bar to ensure the draw down speed be more stable.
- Better repeatability for applicating film
- Applicable to all Caltech’s different type and size applicators and wire bars
- Optimal design for vacuum plate to ensure suction power is distributed uniformly
Ordering Information:

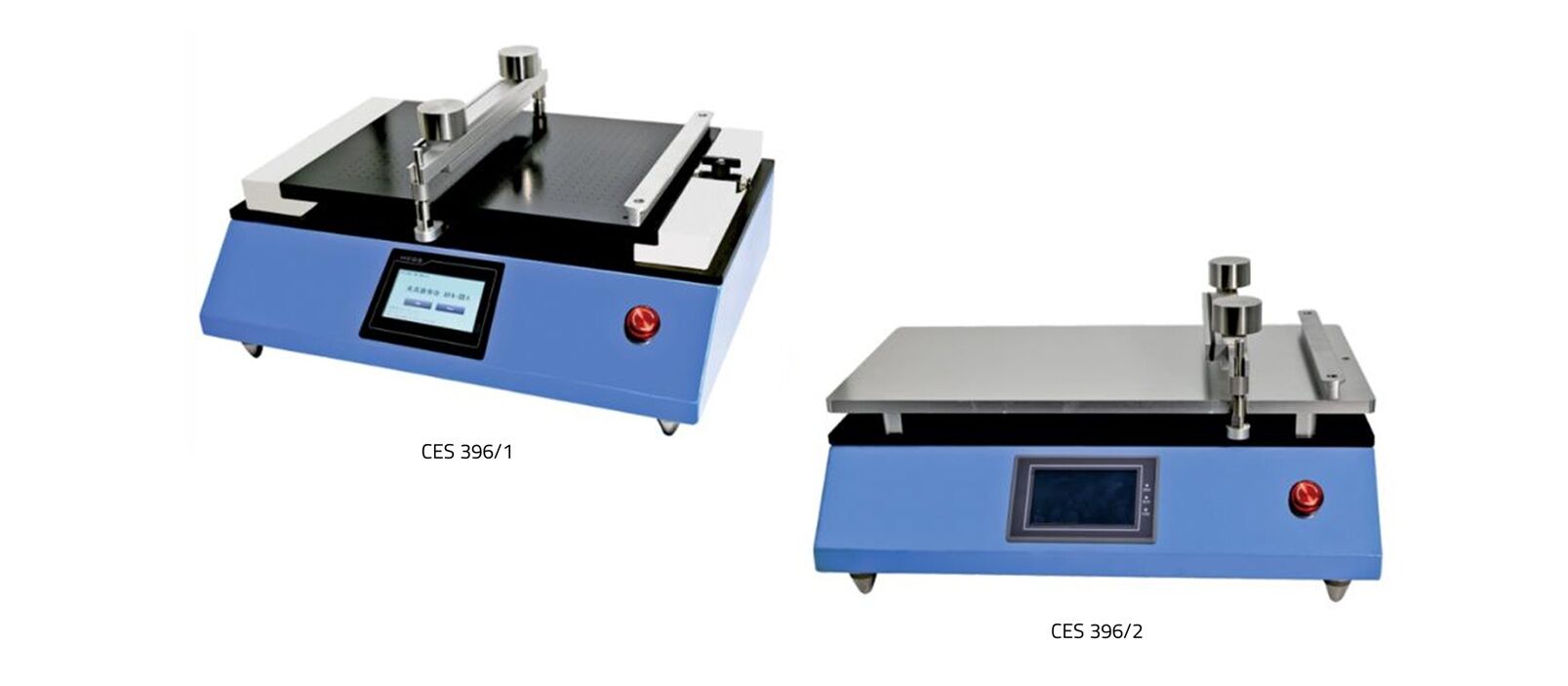

| CES 396 – Automatic Film Applicator | |||
| Model | CES 396/3 | CES 396/1 | CES 396/2 |
| Coating Table Configuration | Heating Vacuum | Vacuum | Fixture Glass |
| Drawdown Speed | 2-200 mm/s | 2-200 mm/s | 2-200 mm/s |
| Max. Application Length | 250 mm | 250 mm | 250 mm |
| Maximum Set Temperature | 100°C | – | – |
| Coating Table Length (L*W) | 360×250 mm | 360×250 mm | 430×250 mm |
| Distribution Of Suction Holes (L*W) | 280×190 mm | 280×190 mm | – |
| Power Supply | 110V/220V 50/60Hz | 110V/220V 50/60Hz | 110V/220V 50/60Hz |
| External Dimensions (L*W*H) | 470x330x250 mm | 470x330x250 mm | 470x330x250 mm |
| Instrument Weight | 18 kg | 18 kg | 18 kg |
