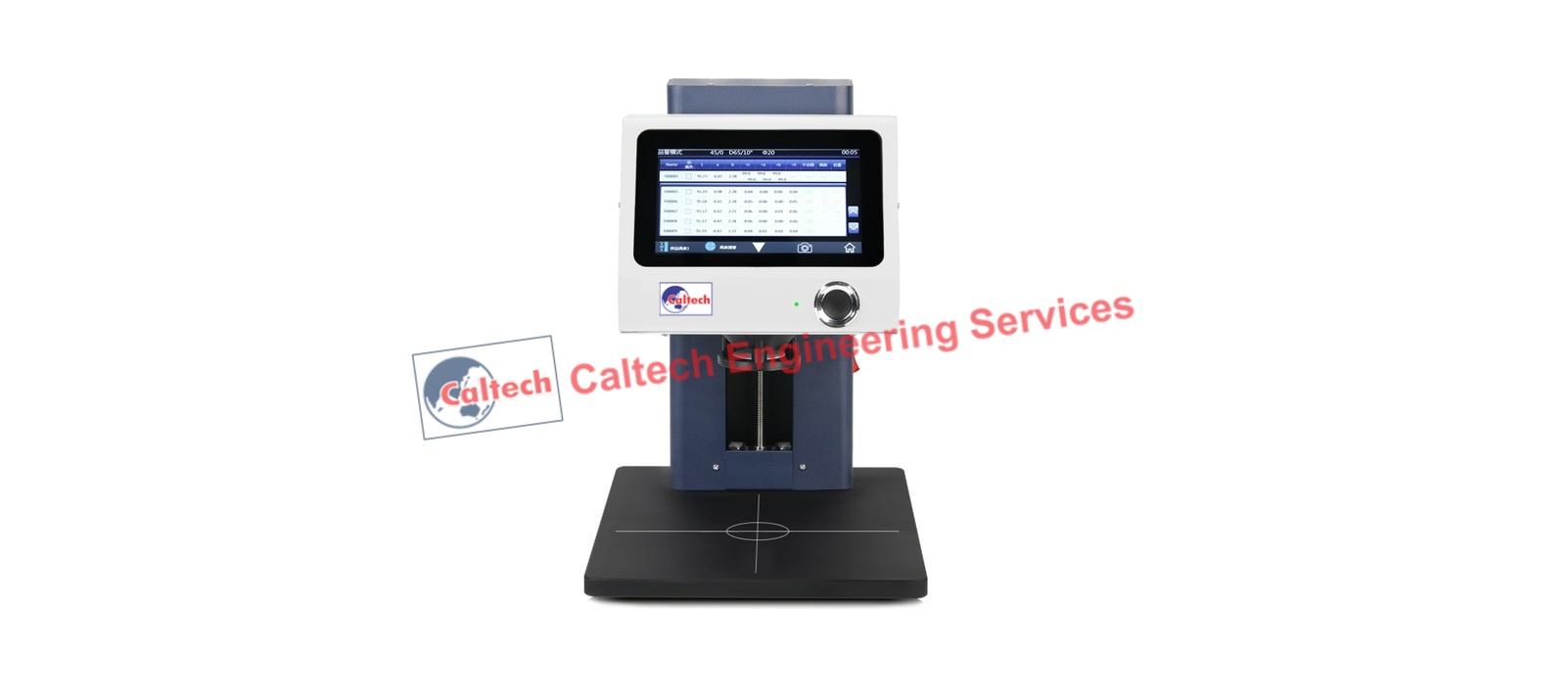

CES-531 Non-contact Benchtop Spectrophotometer

Synonym :

Category: Appearance, Coating Inspection, Spectrophotometer

Caltech India offers CES-531 Non-contact Benchtop Spectrophotometer. CES-531 spectrophotometer is a color measuring instrument with 45/0 optical geometry(45 ring-shaped illumination, vertical viewing), to achieve precise non-contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc.

CES-531 non-contact benchtop spectrophotometer can be applied for accurate color analysis and transmission in laboratories and R & D industries; it can also be used for accurate color measurement and quality control of automated production lines; it is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries, and also for fluorescence sample measurement. Its unique innovative design can not only provide non-contact measurement scheme directly from the production line, but also ensure stable and high-precision measurement results.

CES-531 non-contact spectrophotometer will not touch the sample in the measurement process, to prevent damage to the sample, but also to avoid cross contamination.

Features:

1. non-contact, 45 / 0 geometric optical structure to measure the reflectance and chromaticity of objects
2. The movable measuring head moves up and down according to the actual height of the measured object
3. Large touch screen measurement interface, real-time display of measurement data, to realize more measurement functions
4. Multiple measurement modes (sample, quality control, continuous statistical mode) can be selected to meet the personalized needs
5. According to the actual height of the testing sample, the measuring probe can be moved up and down automatically and the height of the testing sample can be stored.
6. TFT true color 7 inch capacitive touch screen; concave grating.
7. 256 Image Element Double Array CMOS Image Sensor.
8. Wavelength range: 400~700nm, 10nm output.
9. Lighting source: full spectrum LED light,uv light.
10. Multiple measurement modes: Sample mode, QC mode, Continuous Statistical mode to meet more customer needs.
11. Large capacity storage: Sample mode + QC mode: 40,000 Continuous statistics mode: 10,000
12. Built-in camera locating.
13. PC software has powerful extended function.

Application Industry:

45/0 non-contact benchtop spectrophotometer can achieve precise non- contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R & D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries, and also for fluorescence sample measurement.

Ordering Information:

ModelCES-531
Illumination system45/0 method(45 ring-shaped illumination, vertical viewing);Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833
Features45/0 non- contact benchtop spectrophotometer can achieve precise non- contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R & D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries, and also for fluorescence sample measurement.
Light SourceFull spectrum LED light,UV light
Spectrophotometric ModeConcave Grating
Sensor256 Image Element Double Array CMOS Image Sensor
Wavelength Range400~700nm/10nm output
Reflectance Range0~200%
Measuring ApertureΦ20mm(can be customized <20mm)
Non-contact Distance7.5mm
Sample Height0~150mm
Distance Adjustment MethodManual adjustment and automatic adjustment (test height can be stored)
Measuring modeSample mode/QC Mode/Continuous statistics mode
Locating MethodCamera Locating
Color SpaceCIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color Difference FormulaΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric IndexWI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),TI(ASTM E313,CIE/ISO),
Metamerism Index MI, Staining Fastness,Color Fastness,Color Strength,Opacity
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed DataSpectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset
Measuring TimeAbout 1.5s
Data StorageSample mode + QC mode: 40,000; Continuous statistics mode: 10,000
RepeatabilitySpectral reflectance: Standard deviation within 0.08%
Chromaticity value: Within ΔE*ab 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument ErrorWithin ΔE*ab 0.2(Average for 12 BCRA Series II color tiles)
Measurement ModeSingle Measurement, Average Measurement(2 ~ 99 times)
Dimension330*250*370mm
WeightAbout 10 kg
Power SupplyDC 24V, 3A Power Adapter
Illuminant Life Span5 years, more than 3 million times measurements
Display Screen7″ TFT Capacitive Screen-touch Display
Data PortUSB/RS-232, Bluetooth®4.0
LanguageSimplified Chinese,Traditional Chinese,English
Working EnvironmentTemperature: 0~40℃; Humidity: 0~85% (No Condensation); Altitude < 2000m
Storage EnvironmentTemperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard AccessoryPower Adapter, User Manual, USB cable, Standard Calibration Board, Black Calibration Cavity,
NotesThe specifications are subject to change without notice.
