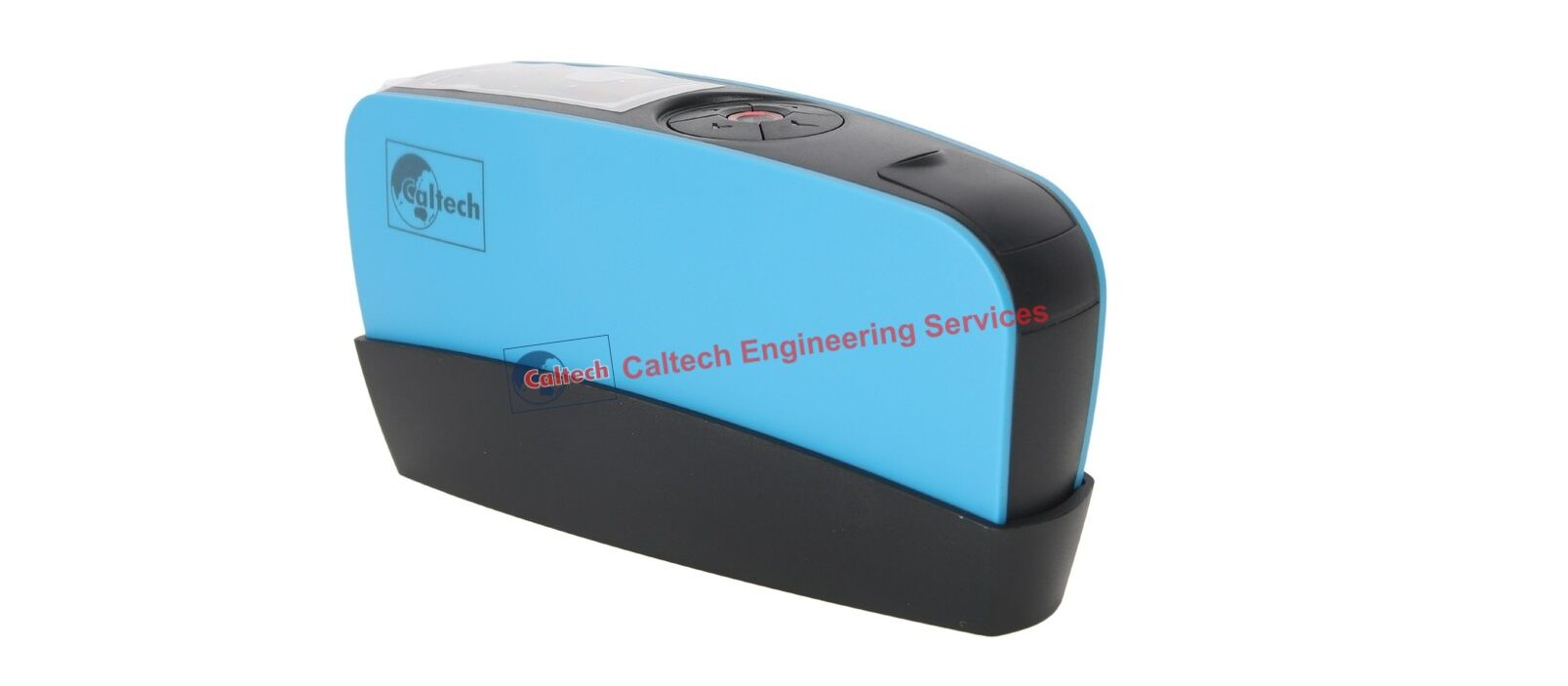

CES-503 Tri Gloss Meter

Synonym : Glossometer, Tri Angle Glossmeter, Gloss Measuring Instrument

Category: Appearance, Coating Inspection, Gloss & Reflectance

Caltech India is the leading manufacturer and supplier of CES-503 Tri Gloss Meter. Gloss is measured by directing a constant intensity light beam, at a fixed angle, on to the test surface and then monitoring the amount of reflected light from the same angle. This specular reflectance is measured using a glossmeter. Different surfaces require different reflective angles. Our gloss meter comes with factory calibration. Enquire now, to know the gloss meter price.

Glossometer is independently developed with intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.

CES 503 Tri-angle Gloss Meter can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products, paint, car paint, floor finish, granite, printing industry, powder coating, polished concrete, coating, plastics, ink, rubber, printing, paper, glass, hardware, ceramic, marble, vitrified polished tile, pottery brick and porcelain, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

High Gloss

Surfaces with a brilliant or highly polished finish reflect images clearly. This distinct reflection is caused by the incident light reflecting on the surface in a specular direction.

Semi & Matt Gloss

Semi and matt surfaces reflect images less distinctly and with reduced intensity. On semi or matt surfaces light not only reflects in a specular direction but also is scattered causing the reflected image to appear diffused.

Product Features:

1. Elegant Design combined with aesthetics and ergonomics;

2. With auto-calibration function;

3. Meet the first grade requirements of JJG696;

4. Large storage to save over 35000 data;

5. Auto Power-off within optional 30-120 seconds;

6. Comply to ISO2813, ASTM523, GB/T9754;

7. With PC software for quality report, more extend functions;

8. With multi working modes and multi-functions for most customers’ requirements.

Application:

The gloss meter is used in many industries from paper mills to automotive and are used by the producer and the user alike, paints & coatings, powder coatings, additives, inks, plastics, paints, coating, plastics, ink, rubber, printing, paper, glass, hardware, ceramic, marble, wood coatings, polishes and flooring, yacht manufacture, automotive manufacture and re-finis, aerospace, polished stone and metals, consumer electronics, anodized metals.

Ordering Information:

Caltech India offer a comprehensive range of single, dual & triple angle glossmeters and DOI meters, which provide Gloss, % Reflectance and Haze measurements on a wide range of surfaces.

The Gloss Meter Series is available as either a simple entry level 60° gloss meter or state of the art Single, Dual or Triple Angle Glossmeter with % Reflectance and Haze measurement capability.

CES 503 – Tri Angle Gloss Meter
Measuring Angle 20° 60° 85°
Measuring Area 20°: 0-2000GU, 60°: 0-1000GU, 85°: 0-160GU
Division Value 0.1GU
Measuring Modes Basic mode; Statistic mode; continuous mode; QC mode
Measuring Time 0.5S
Repeatability 0~100GU: ±0.2GU;
100~2000GU: ±0.2%GU
Specifications ISO2813, ASTM D523, ASTM D2457 and GB/T9754
Auto Power-off Time 30s~120s
Long-time Calibration Automatic check and made calibration
Storage 35000(Basic mode &Statistic mode: 1500; Continuous
mode: 10000; QC mode: 10000
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery (can measure 10000 times)
Interface USB & Bluetooth 2.1 version
PC Software GQC6 QC software can printing testing report and with
more extended functions
Operation Temperature Range 0- 40℃(32-104° F)
Storage Temperature Range -20- 50℃(-4-122° F)
Humidity Range < 85% RH, without condensation
Standard Accessories USB cable, user manual, calibration plate, QC software
Optional Accessories Miniature printer

We are the best gloss meter manufacturer and supplier in india.  Gloss meter calibration certificate is always provided along with the instrument.

Our gloss meter price is comparatively at economical cost with a good quality compared to other brands like elcometer, sheen, horiba, tqc, byk, novo, konica minolta.

We also do the gloss meter calibration services in india. Also we do undertake calibration tile of glossometer for the calibration.

We also provide Repair & Calibration Services of Gloss Meter. To know more about gloss meter price and its availability in India and Worldwide. Contact us.
